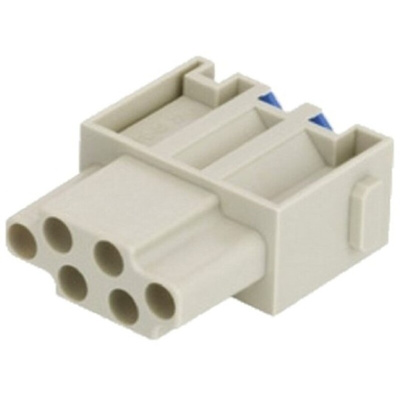

09140062733, HARTING Heavy Duty Power Connector Module, 16A, Female, Han-Modular Series, 6 Contacts

Han E Quick Lock Modules

Han E Quick Lock modules offer an innovative and as the name suggest quick locking method of conductor insertion, no special tooling is required, just a terminal screw driver, so is ideally suited to on site assembly. These Quick Lock modules are compatible with standard Han E modules assembled with crimp terminals. Ideal for use with the Han-Modular series, which combine different transmission media and contact types within a single connector.

Rated at 500V 16A
Copper alloy contacts
Quick Lock termination wire range 20-14 AWG (0.5 to 2.5mm²)
Polycarbonate body material
Over 500 Mating cycles
Operating temperature -40 to +125 °C

Standards

DIN EN 60 664-1, DIN EN 61 984

Han E® 16A Crimp Series

These Han E® inserts are rated at 16A. They are intended for use with hoods and housings contained within ranges 5, 6, 7, & 8. These hood and housing ranges are associated to a specific Harting 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.

Harting Han E QuickLock Modules

Datasheet
