NSYSBM20308, Schneider Electric Spacial SBM Series Steel Wall Box, IP66, 200 mm x 300 mm x 80mm, Настенный шкаф

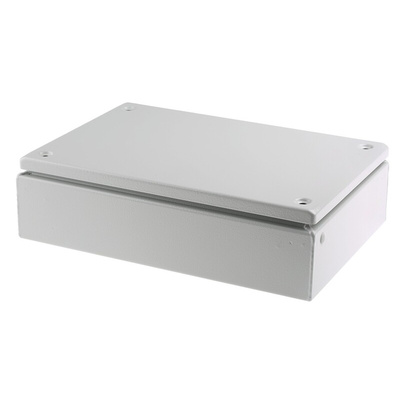

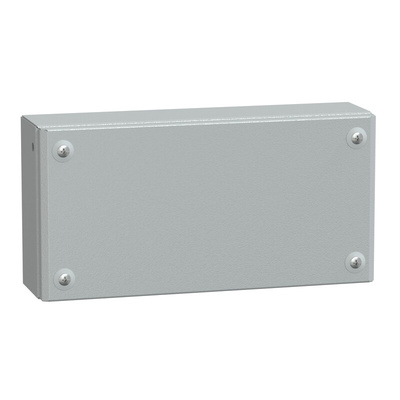

Schneider Electric Steel Wall Box, 200 (H) x 300 (W) x 80mm (D) - Spacial SBM Series - NSYSBM20308

Safely house your components in this robust wall box from Schneider Electric. The unit protects sensitive electrical equipment from dust and moisture while also safeguarding staff from electric shocks. As its metal body is durable and resistant to impact, this is a reliable choice for use in harsh conditions. It also has a polyurethane seal around its door, which protects against abrasion and ensures a long service life. This wall box has a discreet grey exterior so it's suitable for installation in public areas. You'll find it commonly used in panels in railway systems.

• Compact external dimensions of 200 (length) x 300 (width) x 80mm (depth) for use where space is limited
• IP66 (ingress protection) rating means it can withstand dust and high-pressure water jets

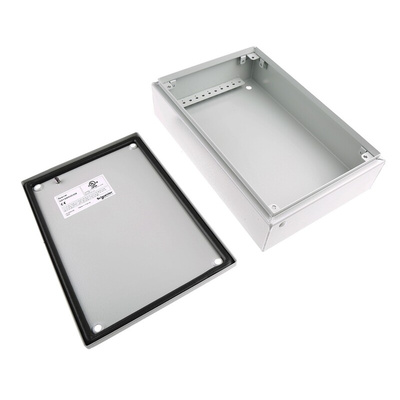

• Removable protective cover for safety and ease of access
• Drilled profiles make it easy to install mounting plates and DIN rails

Applications

• Underground parking
• Railway tunnels

Can I use this wall box in harsh environments?

Yes – this wall box has an operating temperature range of -35°C to +80°C, which means you can use it in extreme conditions.

Standards

IEC 62208 which is the reference standard regarding empty enclosures for device assemblies for protection and manoeuvre to low voltage.

SBM_NSYSBM20308 Datasheet

Catalogue - Universal Enclosures

Product Environmental Profile
