NSYSBM151512, Schneider Electric Spacial SBM Series Steel Wall Box, IP66, 150 mm x 150 mm x 120mm, Настенный шкаф

Schneider Electric Spacial SBM Industrial Wall Box Enclosures.

The Spacial SBM steel enclosures from Schneider Electric are available in three versions and are designed for use in industrial machine and building applications. The SBM wall boxes offer excellent perfomance with up to date design a quality product.
The wall mounting enclosures have a single piece rectangular body with folded gutters in the front and 2 (or 3*) drilled profiles for installing mounting plates and DIN rails in the rear, fixing centres of 12.5 mm.
The enclosure cover is equipped with a polyurethane sealing gasket and 2, 3, 4 or 6 half-turn threaded screws, depending on the version (**). An M6 x 16 earth stud is welded in the cover to provide equipotential connection with the body.

Features and Benefits.

• 28 sizes available increasing to 42 by using the extension box accessory
• 80mm and 120mm depths available, with or without pre-built FL 21 cable entries
• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of up to IK10 (joules 20) meaning the wall box gives protection against a 5 kg object dropped from 40 cm in height
• Can be Installed with just a screwdriver
• Direct fixing though the rear or with external mounting lugs
• Protected inside and outside with polyester grey paint, RAL 7035
• Attractive and tough design for protection of sensitive electronics

Typical Applications.

The Spacial SDB range from Schneider are suitable for use in underground parking, road and railway tunnels.

Note

(*) 3 profiles for width 800 mm, (**) 2 for Bus box (3 screws for width greater than 400 mm), 4 for Flat and Entry boxes (6 screws for width greater than 400 mm).

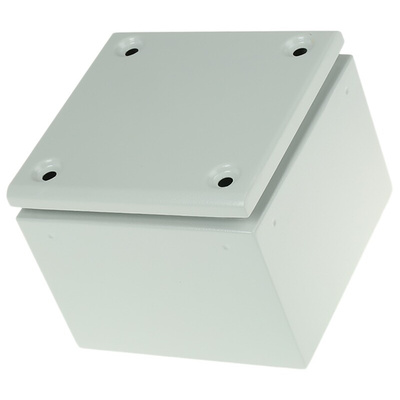

Schneider Electric Wall Box, Screw Door-Lock Type, 1.306kg Net Weight - Spacial SBM Series - NSYSBM151512

Need durable protection for your sensitive industrial components? Grab this wall box from Schneider Electric. It's impact-resistant against forces of up to 20J, so it shrugs off the demands of heavy-duty settings. As this hardy piece of kit can handle temperatures between -35°C and +80°C, it's at home in extreme conditions. Single-piece construction means it provides a highly effective barrier against environmental factors such as dust, moisture and air-borne contaminants. Compact external dimensions of just 150 (H) x 150 (W) x 120mm (D) fit comfortably in cramped conditions, making this a space-saving solution for a busy working environment.

Features & Benefits

• Captive screws in the cover lid won't get lost during installation for hassle-free set-up
• IP66 rating indicates it keeps internal components dry against high-power jets from all directions
• Robust sheet steel material is well-suited to challenging applications
• Polyester powder coating is corrosion-resistant for a long service life

Applications

• Underground parking facilities
• Railway industry
• Factory floors

What's the maximum load this wall box can handle?

For flexible use, this rugged enclosure has a loading capacity of 50kg/m² on the body.

Approvals

BV, DNV, GL, LR, UL.

Standards

IEC 62208.
