RS PRO 5/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/4 MNH Series 12 V dc, 24 V dc, 110V ac, Клапан

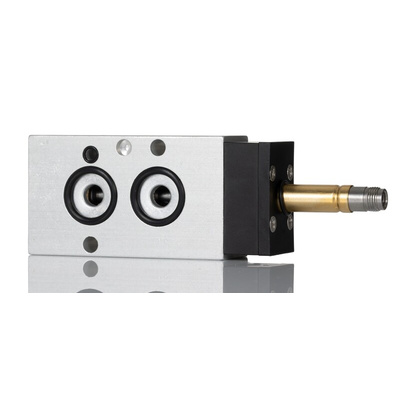

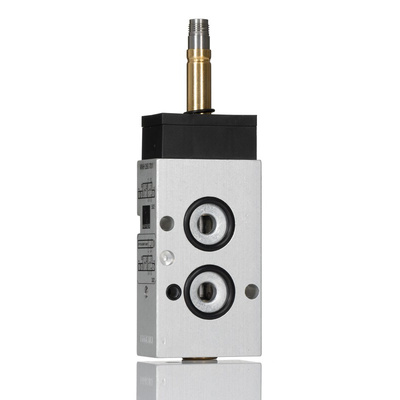

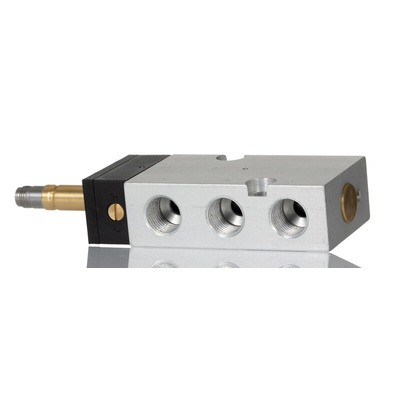

RS PRO 5/2 Pneumatic Solenoid Valve Solenoid/Spring G 1/4 MNH Series

This RS PRO 5/2 Pneumatic Solenoid Valve and spring is used to control pneumatic actuators within NAMUR interfaces. A pneumatic actuator controls the flow of pressurised air or gas to convert energy into rotary or linear motion. This set-up is often found in commercial settings, including the production lines of the food, drink and pharmaceutical industries.

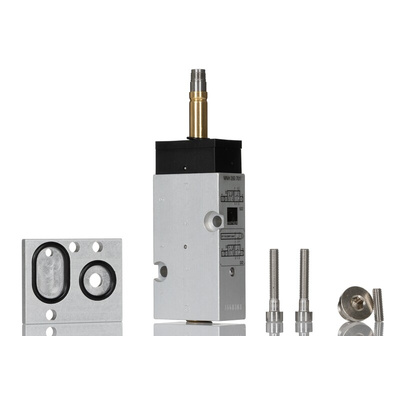

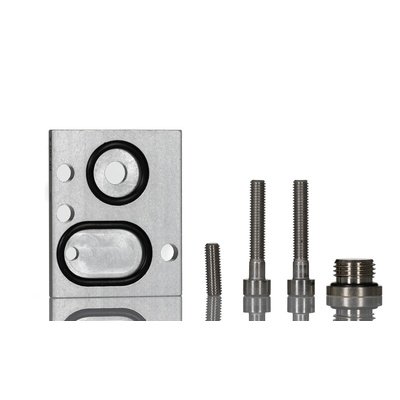

For flexibility, this 5/2 way RS NAMUR valve can be converted to a 3/2 way valve, using the conversion plate supplied. It can operate at temperatures ranging from -10°C to +50°C and in pressure ranges from 2 to 10 bar, with a maximum flow rate of 1250 litres per minute.

As part of our top-quality RS PRO range, it's been stringently tested for durability and consistency. Please note, this product requires a compatible coil to operate (784-0082).

Features and Benefits

• Pneumatic solenoid valve
• MNH manufacturer series
• NAMUR mount
• 5/2 function
• G 1/4 connection port thread
• Maximum flow rate of 1250L/min
• Solenoid voltage of 12 V dc, 24 V dc, 110 V ac and 230 V ac
• Solenoid power consumption of 3 W
• Minimum operating pressure of 2 bar
• Maximum operating pressure of 10 bar
• Operating temperature of -10°C to +50°C
• 5/2 ports
• Thread standard G
• Thread size of a quarter inch

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
