RS PRO Lever 3/2 Pneumatic Manual Control Valve BR Series, Metric M5, M5, Клапан

RS PRO Lever 3/2 Pneumatic Manual Control Valve BR Series

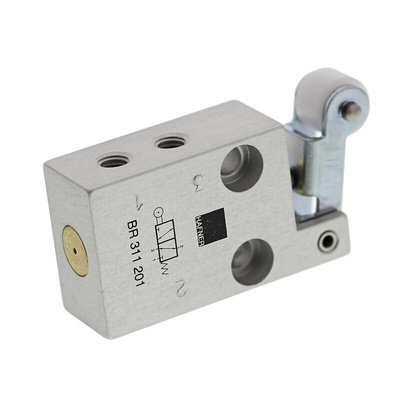

Manually or mechanically control the airflow in your pneumatic system with this RS PRO roller lever spool valve. It has two spool positions and three ports with an M5 thread size, so it offers versatility when connecting tubes or hoses to your actuator.
The control valve is made from a lightweight aluminium material for durability and resistance to corrosion. It's suitable for high-pressure and high-flow applications, as it can accommodate a maximum operating pressure of 10 bar and a maximum flow rate of 125 litres per minute. For ease of use, the spring return lever opens or closes the valve to direct or regulate airflow.
This type of valve is commonly used in industrial automation and control. It's often found in pneumatic systems such as robotic arms on production lines and automatic test equipment in the automotive industry.

Features and Benefits

• Metric M5 connection port thread
• Lever control mechanism
• 3/2-way function
• Maximum flow rate of 125 L/min
• Maximum operating pressure of 10 bar
• Minimum operating temperature of -10°C
• Maximum operating temperature of +50°C
• Three ports
• Two spool positions

RS Pro Datasheet
