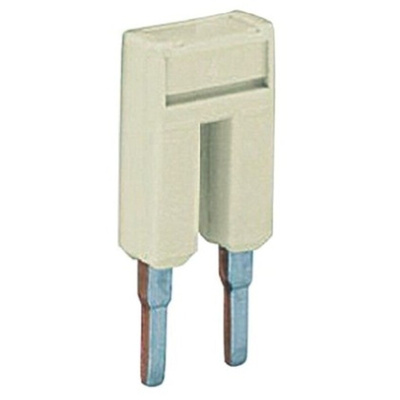

2000-402, Wago TOPJOB S, 2000 Series Jumper Bar for Use with 2000 Series Terminal Blocks, 13.5A

Wago Jumper Bar, 800V Voltage Rating, 0.5g Weight - 2000 Series - 2000-402

Need a middleman to link wires to your circuit? This jumper bar from Wago has you covered. It's used to create a parallel connection between two terminal blocks, making it useful for distributing power signals to multiple components simultaneously. This unit's PA housing does double duty, offering protection against impact in harsh environments and providing insulation to keep electrical hazards at bay. Thanks to a current rating of 14A, it's the right choice for heavy-duty applications.

Features & Benefits

• Compact dimensions of 4.1 (H) x 5.9 (W) x 19mm (D) make it a space-efficient choice for tight setups
• Push-in installation means there's no need for tools, saving you time and effort
• Light weight of 0.5g, so it puts minimal strain on your equipment
• Halogen-free construction limits environmental impact as it doesn't emit toxic fumes in the event of a fire

Applications

• Power distribution systems
• Medical equipment
• CNC machines

Which terminal blocks is this jumper bar designed for?

This accessory is designed for use with rail-mounted terminal blocks in Wago's 2000 series for ease of assembly.

TOPJOB S Series

A range of rail-mounted terminal blocks that can fulfill all industrial and Ex applications, as well as those for building installations. Thanks to CAGE CLAMP® S technology, the TOPJOB® S rail-mounted terminal blocks for the DIN 35 carrier rail give a space saving of 30%. The compact size helps minimize costs through the reduction of panel space used, as well as smaller enclosures and junction boxes.

Series 2000 Rail Mounted Terminal Blocks and Accessories
