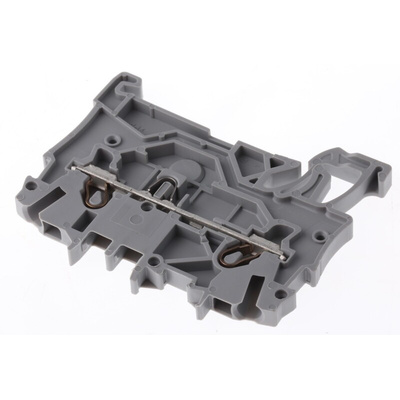

2000-1201, Wago TOPJOB S, 2000 Series Grey Feed Through Terminal Block, 1mm², Single-Level, Push-In Cage Clamp Termination, ATEX,

Standard Terminal Blocks

Wago Feed-Through Terminal Block, 0.434W Power Loss Per Pole, Front-Entry Wiring - TOPJOB S 2000 Series - 2000-1201

Establish a link between wires with this feed-through terminal block from Wago. It has a single-level structure with two connections, so you have room for a dual-wire assembly. The unit accommodates cables that range in size from 24 to 16AWG for flexible installation. You can insert your wires in a jiffy thanks to the simple push-in, cage clamp termination method. These terminals remove the hassle of using tools and help ensure a firm group on the setup.

Features & Benefits

• Low power loss per pole of 0.434W for energy efficiency
• Front-entry wiring enables convenient cable installation
• Rated surge voltage of 8kV to handle faulty currents
• Tough PA66 body offers insulation protection to prevent electric shock
• 13.5A current rating for compatibility with standard power outlets

Applications

• Textile production
• Food packaging
• Waste management systems
• Forestry equipment

What's the pitch size of this feed-through terminal block?

The block has a tight pitch of 3.5mm to fit small conductors.

Can I mark the block for identification?

Yes, you can add a label at its centre or side to identify it in a busy panel.

TOPJOB S Series

A range of rail-mounted terminal blocks that can fulfill all industrial and Ex applications, as well as those for building installations. Thanks to CAGE CLAMP® S technology, the TOPJOB® S rail-mounted terminal blocks for the DIN 35 carrier rail give a space saving of 30%. The compact size helps minimize costs through the reduction of panel space used, as well as smaller enclosures and junction boxes.
