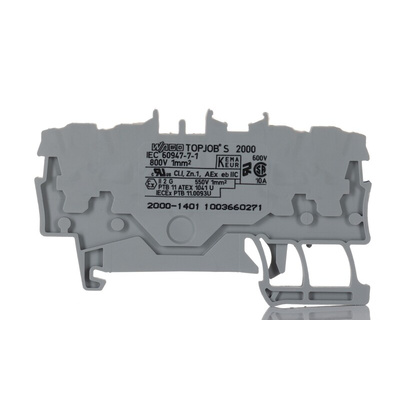

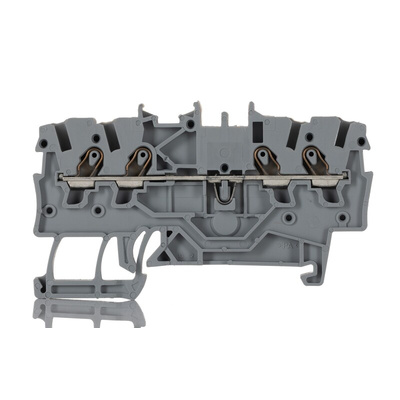

2000-1401, Wago TOPJOB S, 2000 Series Grey Feed Through Terminal Block, 1mm², Single-Level, Push-In Cage Clamp Termination, ATEX,

Wago Feed-Through Terminal Block, 4 Connection Points, 24 to 16AWG Wire Size Range - 2000 Series - 2000-1401

Make secure electrical connections quickly and easily using this feed-through terminal block from Wago. Its CAGE CLAMP® connectors mean you can attach wires with a simple push, so there's no need for special tools. The block can accommodate up to four wires ranging in size from 24 to 16AWG for flexibility. Compact external dimensions of 67.9 (H) x 3.5 (W) x 32.9mm (D) mean it fits easily into small spaces. Complete your setup in a snap by simply clipping the terminal block to a DIN rail.

Features & Benefits

• Current rating of 13.5A for safe use in heavy-duty systems
• PA66 housing provides effective insulation for increased safety
• Light weight of 5.1g places minimal strain on your rail
• Stops burning in 10 seconds or less for safety in the event of a fire

Applications

• Grain silos
• Petrochemical industry
• Marine and offshore industries
• Construction sites

Can this terminal block handle power surges?

Yes. This terminal block has a rated surge voltage of 8kV, so you can count on it to stand strong in the face of sudden power spikes.

TOPJOB S Series

A range of rail-mounted terminal blocks that can fulfill all industrial and Ex applications, as well as those for building installations. Thanks to CAGE CLAMP® S technology, the TOPJOB® S rail-mounted terminal blocks for the DIN 35 carrier rail give a space saving of 30%. The compact size helps minimize costs through the reduction of panel space used, as well as smaller enclosures and junction boxes.

Series 2000 Rail Mounted Terminal Blocks and Accessories
