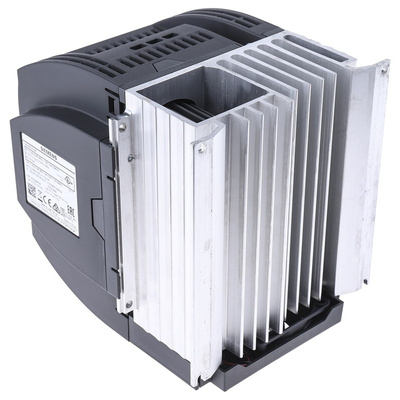

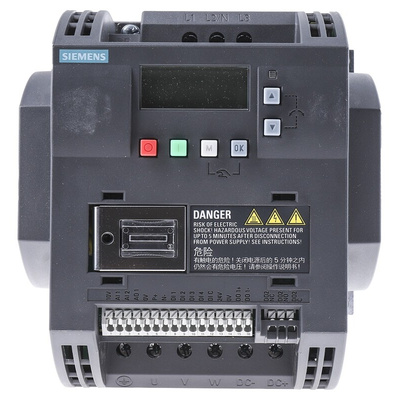

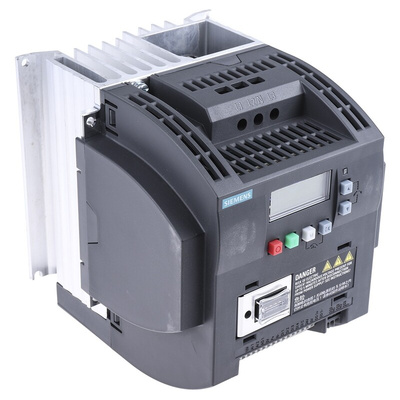

6SL3210-5BE24-0UV0, Siemens Inverter Drive, 4 kW, 3 Phase, 400 V ac, 8.2 A, 8.8 A, SINAMICS V20 Series

Siemens Inverter Drive, 0 to 550Hz Output Frequency, 140mm Width - SINAMICS V20 Series - 6SL3210-5BE24-0UV0

Take the effort out of streamlining your HVAC and processing systems with this inverter drive from Siemens. It uses frequency controls to automate the motion of motors. Eco and hibernation modes boost their efficiency during operation and help to prolong machine lifespans. Thanks to basic parameter settings and a user-friendly keypad and display, you can be up and running in a snap without the need for specialist engineering tools. A power rating of 4kW means you can use this inverter to get the most out of conveying equipment and pumping, ventilating and compressing applications.

Features & Benefits

• Compatible with parameter loader and smart access modules (such as 136-8131) for wireless commissioning
• Wide operating temperature range between -10°C and +60°C
• Keep-running mode ensures operations run smoothly when power supplies are unstable
• Displays energy usage in kWh and currency for easy monitoring
• Handy dimensions of 160 (H) x 140 (W) x 164.5mm (D) to fit into compact enclosures

Can I operate this inverter drive from outside my control cabinet?

Yes. You can hook the device up to a BOP interface module (136-8127), which fixes to the outside of your cabinet, enabling you to take control without opening the door.
