3030255, Phoenix Contact FBS4-6 Series Jumper Bar for Use with DIN Rail Terminal Blocks

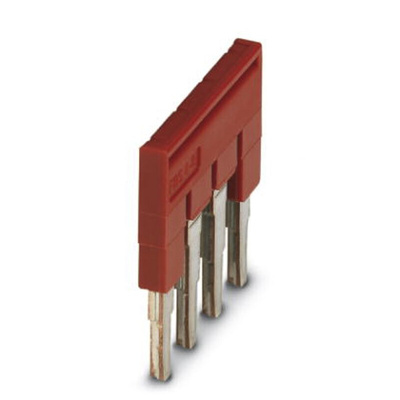

FBS 6 Plug-in jumper bridge

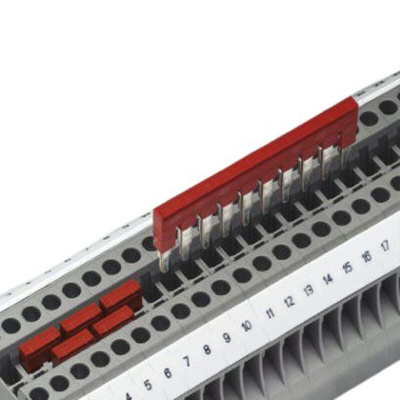

The FBS series of jumper bars from Phoenix Contact are small bridges that are designed to connect (or bridge) terminal blocks that are in the CLIPLINE range. These bridges come with a red plastic cover over the pins so it's easy for you to simply push in the bridge into your terminal block with ease. Not to mention, these jumper bars save massive amounts of time thanks to them being a simple push in connection, rather than having to strip and push in every individual wire to bridge terminal blocks.

The FBS series of jumper bars allows for up to 41 A as maximum load current, although that value can differ if you're using different terminal blocks.

Features and benefits:

• FBS is designed to be used in Plug-in bridge scenarios


• The maximum load current of an impressive 41A


• Effortless to use, simply push into your terminal block and save time

Phoenix Contact Jumper Bar - FBS 4-6 - 3030255

To achieve fast potential distribution in a series of circuit breakers, turn to this jumper bar from Phoenix Contact. It easily connects terminal blocks and has user-friendly push-in connectors that ensure simple and tool-free wiring, even in confined spaces. The unit allows for a maximum load current of up to 41A.
The jumper bar's push-in connection technology eliminates the need for stripping wires and individually inserting them. Special contact springs significantly reduce the insertion force needed while ensuring a high-quality contact. Its push button permits easy and safe conductor release using any type of tool and without making direct contact with live parts.
As this component provides a highly durable connection, it's suitable for rugged applications such as shipbuilding, wind power and the railway industry. It's compatible with the Phoenix Contact CLIPLINE range of terminal blocks.

• Red body colour
• 2 to 50 position jumpers
• Resistant to corrosion, shock and vibration
• Tested for railway applications
• Meets the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards, so it won't damage equipment via electrostatic discharge

CLIPLINE complete accessories

Jumper bar FBS 4-6 Data Sheet
