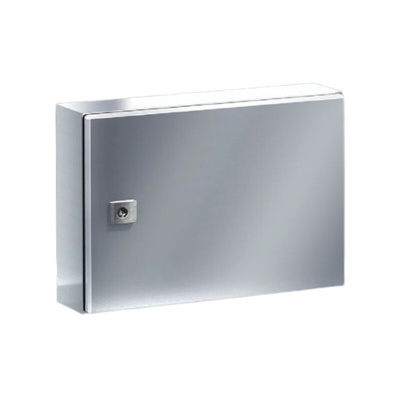

1004600, Rittal AE Series 304 Stainless Steel Wall Box, IP66, 300 mm x 380 mm x 155mm, Настенный шкаф

Rittal AE Compact Enclosures

The AE series from Rittal is a compact stainless steel enclosure with an all-round foamed-in PU seal offering IP66 protection to IEC 60 529.

Protection category: IP66 to IEC 60 529, NEMA 4X and IK08
Stainless steel 1.4301 (AISI 304) enclosure and door
Door opening angle approx. 130°

Enclosure Canopy - available separately

Stock no. 457-1067 is for enclosure size W 300 x D 210 mm
Stock no. 457-1073 is for enclosure size W 500 x D 210 mm
Stock no. 457-1023 is for enclosure size W 200 x D 155 mm
Stock no. 457-1045 is for enclosure size W 380 x D 210 mm

Black Plastic Handles - available separately

Stock no. 457-1095 is a handle with lock cylinder insert, lock no. 3524 E (cannot be used with stock no. 784-6171)
Stock no. 860-4506 is a handle and casing, without lock cylinder insert
Stock no. 860-4524 is a handle and casing, with lock cylinder insert, lock no. 3524 E

Approvals

UL, CUL, TUV, CSA and Lloyds Register of Shipping.

Rittal Stainless Steel Wall Box, 300mm Height, 155mm Depth - AE Series – 1004600

This wall box from Rittal will protect your sensitive circuits or wiring cables in harsh industrial environments. Its stainless steel body is durable and corrosion-resistant, and its waterproof PU (polyurethane) sealing gasket provides an IP66 (ingress protection) rating for protection against dust and high-pressure water jets. For simple mounting on a wall, this box is compatible with an external wall bracket. You can use the unit in conjunction with Rittal's compatible enclosure canopies for additional protection from the elements or with Rittal's black lock handles for simplified door opening.

Features & Benefits

• Door opening angle of 130° for easy equipment access
• Compact measurements of 300mm (H) x 380mm (W) x 155mm (D) for fitting in confined spaces
• Pre-drilled mounting holes for ease of installation

Applications

• Sensitive electrical equipment
• Industrial wires and cables
• Medical equipment

Is this terminal box protected against tampering?

Thanks to the built-in cam lock on the door, this terminal box can only be opened using the corresponding key, ensuring that unauthorised personnel can't access the interior and tamper with sensitive equipment.
