1011600, Rittal AE Series 304 Stainless Steel Wall Box, IP66, 300 mm x 380 mm x 210mm, Настенный шкаф

Rittal AE Compact Enclosures

The AE series from Rittal is a compact stainless steel enclosure with an all-round foamed-in PU seal offering IP66 protection to IEC 60 529.

Protection category: IP66 to IEC 60 529, NEMA 4X and IK08
Stainless steel 1.4301 (AISI 304) enclosure and door
Door opening angle approx. 130°

Enclosure Canopy - available separately

Stock no. 457-1067 is for enclosure size W 300 x D 210 mm
Stock no. 457-1073 is for enclosure size W 500 x D 210 mm
Stock no. 457-1023 is for enclosure size W 200 x D 155 mm
Stock no. 457-1045 is for enclosure size W 380 x D 210 mm

Black Plastic Handles - available separately

Stock no. 457-1095 is a handle with lock cylinder insert, lock no. 3524 E (cannot be used with stock no. 784-6171)
Stock no. 860-4506 is a handle and casing, without lock cylinder insert
Stock no. 860-4524 is a handle and casing, with lock cylinder insert, lock no. 3524 E

Approvals

UL, CUL, TUV, CSA and Lloyds Register of Shipping.

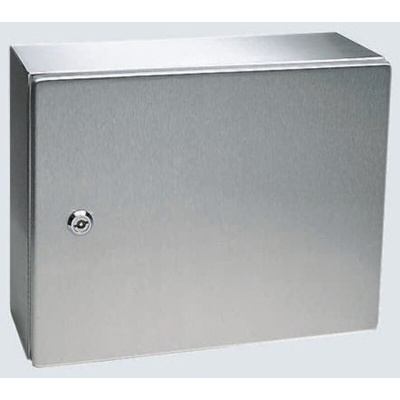

Rittal Stainless Steel Wall Box, 380mm Width, 300mm Height - AE Series - 1011600

For safe storage of your electrical and mechanical devices, turn to this wall box from Rittal. Its compact external dimensions of 300 (height) x 380 (width) x 210mm (depth) take up minimal space on your wall. This enclosure comes with a sheet steel mounting plate for quick and secure installation. For added durability, the mounting plate is zinc-plated for resistance to corrosion in harsh industrial environments. The foamed-in PU (polyurethane) seal helps keep contaminants out to ensure effective protection of your sensitive devices.

Features & Benefits

• Stainless steel housing material for resistance to corrosion and wear
• IP66 (ingress protection) rating for protection against dust and high-pressure water jets
• Light weight of 8.4kg to minimise strain on your wall

Applications

• Factory floors
• Construction industry
• Storage units

How secure is this wall box?

This wall box comes with a 3mm double-bit cam lock for added protection against unauthorised access. The tamperproof lock is made from nickel-plated die-cast zinc, which is resistant to impacts and corrosion. The door is non-transparent to prevent unauthorised personnel from seeing the contents of the box.
