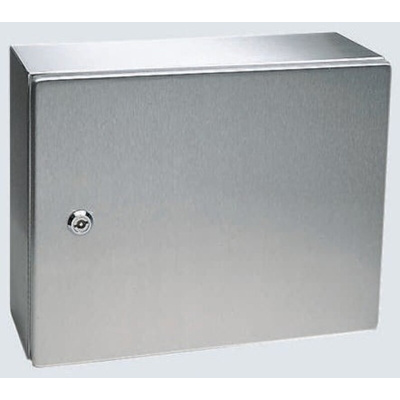

1009600, Rittal AE Series 304 Stainless Steel Wall Box, IP66, 380 mm x 600 mm x 210mm, Настенный шкаф

Rittal AE Compact Enclosures

The AE series from Rittal is a compact stainless steel enclosure with an all-round foamed-in PU seal offering IP66 protection to IEC 60 529.

Protection category: IP66 to IEC 60 529, NEMA 4X and IK08
Stainless steel 1.4301 (AISI 304) enclosure and door
Door opening angle approx. 130°

Enclosure Canopy - available separately

Stock no. 457-1067 is for enclosure size W 300 x D 210 mm
Stock no. 457-1073 is for enclosure size W 500 x D 210 mm
Stock no. 457-1023 is for enclosure size W 200 x D 155 mm
Stock no. 457-1045 is for enclosure size W 380 x D 210 mm

Black Plastic Handles - available separately

Stock no. 457-1095 is a handle with lock cylinder insert, lock no. 3524 E (cannot be used with stock no. 784-6171)
Stock no. 860-4506 is a handle and casing, without lock cylinder insert
Stock no. 860-4524 is a handle and casing, with lock cylinder insert, lock no. 3524 E

Approvals

UL, CUL, TUV, CSA and Lloyds Register of Shipping.

Rittal Stainless Steel Wall Box, 600mm Width, 210mm Depth - AE Series - 1009600

This hardwearing wall box from Rittal's AE series houses your components and protects them from damage and contaminants. It's made of durable stainless steel that's corrosion and impact-resistant, so it can stand up to use in heavy-duty environments. The material is also non-combustible, so the unit is flame-resistant for enhanced protection in the event of a fire. This component has a cam lock that prevents unauthorised access and tampering for added safety. It's a good choice for use in the automation and electronics industries.

Features & Benefits

• Compact dimensions of 380 (height) x 600 (width) x 210mm (depth) to fit into small spaces
• Zinc-plated mounting plate to secure the enclosure firmly to the wall
• Modular design for quick and easy installation
• IP66 (ingress protection) rating to withstand dust and strong water jets

Applications

• Telecommunication devices
• Data banks

What kind of tools do I need to install this wall box?

This wall box is easy to install. To mount it on a wall, all you need is a suitable drill, a screwdriver and wall fixings, such as screws and anchor plugs.
