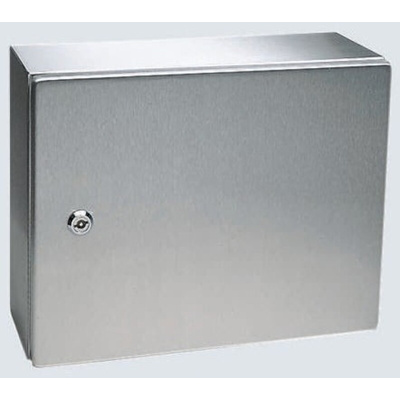

1008600, Rittal AE Series 304 Stainless Steel Wall Box, IP66, 600 mm x 380 mm x 210mm, Настенный шкаф

Rittal AE Compact Enclosures

The AE series from Rittal is a compact stainless steel enclosure with an all-round foamed-in PU seal offering IP66 protection to IEC 60 529.

Protection category: IP66 to IEC 60 529, NEMA 4X and IK08
Stainless steel 1.4301 (AISI 304) enclosure and door
Door opening angle approx. 130°

Enclosure Canopy - available separately

Stock no. 457-1067 is for enclosure size W 300 x D 210 mm
Stock no. 457-1073 is for enclosure size W 500 x D 210 mm
Stock no. 457-1023 is for enclosure size W 200 x D 155 mm
Stock no. 457-1045 is for enclosure size W 380 x D 210 mm

Black Plastic Handles - available separately

Stock no. 457-1095 is a handle with lock cylinder insert, lock no. 3524 E (cannot be used with stock no. 784-6171)
Stock no. 860-4506 is a handle and casing, without lock cylinder insert
Stock no. 860-4524 is a handle and casing, with lock cylinder insert, lock no. 3524 E

Approvals

UL, CUL, TUV, CSA and Lloyds Register of Shipping.

Rittal Stainless Steel Wall Box, 600mm Height, 210mm Depth - AE Series - 1008600

Use this wall box from Rittal to store and protect your mechanical and electronic devices. It has compact dimensions of 600 (height) x 380 (width) x 210mm (depth), so you can use it in areas where space is limited. The component also ensures dust protection as it has a polyurethane (PU) foam seal on its door that blocks out contaminants.
This unit is made of robust stainless steel that provides durability and impact resistance, so it's suitable for use in harsh environments. You'll find it used in production facilities and a range of industrial environments.

Features & Benefits

• Two cam door locks prevent unauthorised access
• Included zinc-plated mounting plate for simple and secure attachment to a wall
• Light weight of 15.1kg for easy handling during installation
• Wide door swing angle of 130° for ease of access to the box's contents

Applications

• Microbiology laboratories
• Cleanroom environments
• Pharmaceutical production facilities

Is this wall box safe for use in damp environments?

Thanks to its IP66 (ingress protection) rating, the wall box is resistant to high-pressure water jets. The polyurethane seal also helps to keep moisture out for safe use in damp areas.
