1013600, Rittal AE Series 304 Stainless Steel Wall Box, IP66, 500 mm x 500 mm x 300mm, Настенный шкаф

Rittal AE Compact Enclosures

The AE series from Rittal is a compact stainless steel enclosure with an all-round foamed-in PU seal offering IP66 protection to IEC 60 529.

Protection category: IP66 to IEC 60 529, NEMA 4X and IK08
Stainless steel 1.4301 (AISI 304) enclosure and door
Door opening angle approx. 130°

Enclosure Canopy - available separately

Stock no. 457-1067 is for enclosure size W 300 x D 210 mm
Stock no. 457-1073 is for enclosure size W 500 x D 210 mm
Stock no. 457-1023 is for enclosure size W 200 x D 155 mm
Stock no. 457-1045 is for enclosure size W 380 x D 210 mm

Black Plastic Handles - available separately

Stock no. 457-1095 is a handle with lock cylinder insert, lock no. 3524 E (cannot be used with stock no. 784-6171)
Stock no. 860-4506 is a handle and casing, without lock cylinder insert
Stock no. 860-4524 is a handle and casing, with lock cylinder insert, lock no. 3524 E

Approvals

UL, CUL, TUV, CSA and Lloyds Register of Shipping.

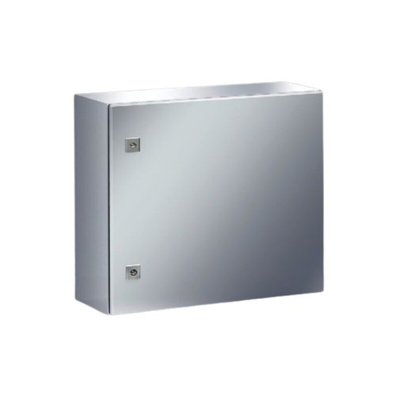

Rittal Stainless Steel Wall Box, 500mm Width, 500mm Height - AE Series - 1013600

This wall box from Rittal is a mountable container that keeps your components safe and secure. It mounts to a wall bracket for accessibility at standing height. The wall box has a height and width of 500mm for use with larger objects, while a 300mm depth prevents it from protruding too far from the wall. It's commonly used by property managers to keep keys or other valuable items secure.

Features & Benefits

• IP66 (ingress protection) rating means the box offers effective resistance against dust and high-pressure water sprays
• Body made of 304-grade stainless steel material for durability and resistance to impact and rust
• Non-transparent door enhances security by hiding the contents inside the box
• All-round foamed-in polyurethane (PU) seal to protect contents against contaminants and moisture

Applications

• Real estate staff rooms
• Factory floors
• Caretaker offices

Is this wall box lockable?

Yes, this wall box comes with a cam lock to prevent unauthorised access. It opens when you turn it with a lock cylinder insert handle, making it simple to use.

Certificate

Datasheet

Instruction Sheet - 1013600

Datasheet - 1013600
