1012600, Rittal AE Series 304 Stainless Steel Wall Box, IP66, 760 mm x 600 mm x 210mm, Настенный шкаф

Rittal AE Compact Enclosures

The AE series from Rittal is a compact stainless steel enclosure with an all-round foamed-in PU seal offering IP66 protection to IEC 60 529.

Protection category: IP66 to IEC 60 529, NEMA 4X and IK08
Stainless steel 1.4301 (AISI 304) enclosure and door
Door opening angle approx. 130°

Enclosure Canopy - available separately

Stock no. 457-1067 is for enclosure size W 300 x D 210 mm
Stock no. 457-1073 is for enclosure size W 500 x D 210 mm
Stock no. 457-1023 is for enclosure size W 200 x D 155 mm
Stock no. 457-1045 is for enclosure size W 380 x D 210 mm

Black Plastic Handles - available separately

Stock no. 457-1095 is a handle with lock cylinder insert, lock no. 3524 E (cannot be used with stock no. 784-6171)
Stock no. 860-4506 is a handle and casing, without lock cylinder insert
Stock no. 860-4524 is a handle and casing, with lock cylinder insert, lock no. 3524 E

Approvals

UL, CUL, TUV, CSA and Lloyds Register of Shipping.

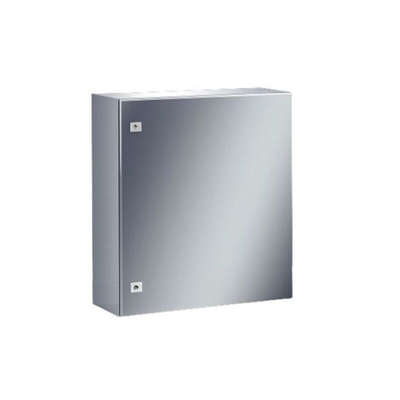

Rittal Stainless Steel Wall Box, 760mm Height, 600mm Width - AE Series - 1012600

Use this wall box from Rittal to house your sensitive industrial equipment. Its stainless steel body is resistant to wear and corrosion for use in harsh environments. This unit comes with two 3mm double-bit cam locks to prevent unauthorised personnel from accessing its contents. Thanks to its large external dimensions of 760 (height) x 600 (width) x 210mm (depth), this enclosure offers ample space to store multiple items.

Features & Benefits

• PU (polyurethane) foam seal helps keep contaminants out
• Nickel-plated die-cast zinc lock material is resistant to impact to prevent tampering
• IP66 (ingress protection) rating for protection against dust and high-pressure water jets

Applications

• Storage facilities
• Assembly plants
• Mining and quarrying industry
• Warehouses

How do I mount this wall box?

You can easily mount this wall box using the supplied mounting plate. The plate is made from zinc-plated sheet steel, which is resistant to impact and corrosion to ensure a strong hold. This wall box is also compatible with wall mounting brackets (159-414) from Rittal, giving you flexible installation options.
