1014600, Rittal AE Series 304 Stainless Steel Wall Box, IP66, 760 mm x 760 mm x 300mm, Настенный шкаф

Rittal AE Compact Enclosures

The AE series from Rittal is a compact stainless steel enclosure with an all-round foamed-in PU seal offering IP66 protection to IEC 60 529.

Protection category: IP66 to IEC 60 529, NEMA 4X and IK08
Stainless steel 1.4301 (AISI 304) enclosure and door
Door opening angle approx. 130°

Enclosure Canopy - available separately

Stock no. 457-1067 is for enclosure size W 300 x D 210 mm
Stock no. 457-1073 is for enclosure size W 500 x D 210 mm
Stock no. 457-1023 is for enclosure size W 200 x D 155 mm
Stock no. 457-1045 is for enclosure size W 380 x D 210 mm

Black Plastic Handles - available separately

Stock no. 457-1095 is a handle with lock cylinder insert, lock no. 3524 E (cannot be used with stock no. 784-6171)
Stock no. 860-4506 is a handle and casing, without lock cylinder insert
Stock no. 860-4524 is a handle and casing, with lock cylinder insert, lock no. 3524 E

Approvals

UL, CUL, TUV, CSA and Lloyds Register of Shipping.

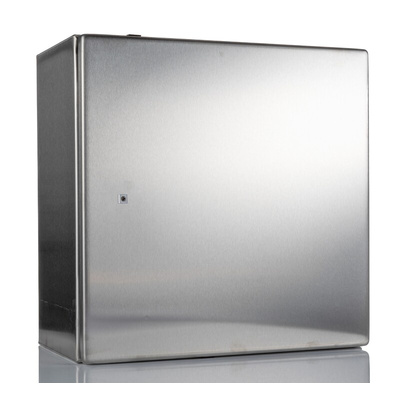

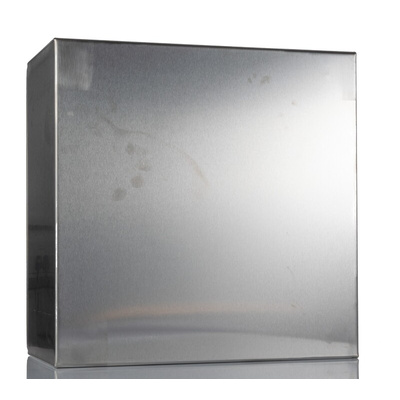

Rittal Stainless Steel Wall Box, 760mm Width, 760mm Height - AE Series - 1014600

Store your valuable items in this secure, accessible wall box from Rittal. The box has a 760mm square design with a 300mm depth, providing ample storage space for valuable equipment such as tools, keys or electrical equipment. For greater security, the wall box has a cam lock that opens using a lock cylinder insert. This ensures that the items inside remain protected against unauthorised access. Thanks to its 304-grade stainless steel construction, the box is highly durable and protected against wear and corrosion for reliable performance.

Features & Benefits

• IP66 (ingress protection) rating for protection against dust and high-pressure water jets
• Foamed polyurethane (PU) internal seal protects contents from contaminants and moisture for use in harsh conditions

Applications

• Control rooms
• Janitorial offices
• Apartment complexes

How do you mount this wall box?

This wall box mounts using a wall bracket, so you can secure it at standing height for easy access while you're working.

Can you see inside this wall box while it’s closed?

No, you can't see inside this wall box as the door isn't transparent. This helps ensure that unauthorised personnel can't see the contents of the box.

Certificate

Instructions

Datasheet

Dimension Sheet - Compact Enclosures AE

Datasheet - 1014600
