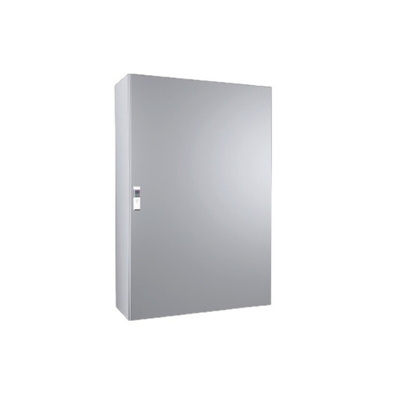

1017600, Rittal AE Series Stainless Steel Wall Box, IP66, 1200 mm x 800 mm x 300mm, Настенный шкаф

Rittal AE Compact Enclosures

The AE series from Rittal is a compact stainless steel enclosure with an all-round foamed-in PU seal offering IP66 protection to IEC 60 529.

Protection category: IP66 to IEC 60 529, NEMA 4X and IK08
Stainless steel 1.4301 (AISI 304) enclosure and door
Door opening angle approx. 130°

Enclosure Canopy - available separately

Stock no. 457-1067 is for enclosure size W 300 x D 210 mm
Stock no. 457-1073 is for enclosure size W 500 x D 210 mm
Stock no. 457-1023 is for enclosure size W 200 x D 155 mm
Stock no. 457-1045 is for enclosure size W 380 x D 210 mm

Black Plastic Handles - available separately

Stock no. 457-1095 is a handle with lock cylinder insert, lock no. 3524 E (cannot be used with stock no. 784-6171)
Stock no. 860-4506 is a handle and casing, without lock cylinder insert
Stock no. 860-4524 is a handle and casing, with lock cylinder insert, lock no. 3524 E

Approvals

UL, CUL, TUV, CSA and Lloyds Register of Shipping.

Rittal Wall Box, Stainless Steel Body Material, 1200mm Height - AE Series - 1017600

Need a reliable way to keep your electronics safe in an industrial environment? Choose this wall box from Rittal. A polyurethane foam seal gives it an IP66 rating, meaning it's protected against dust and high-pressure water jets. A lock helps to restrict unauthorised access, keeping your components safe from tampering. Its stainless steel construction means it's resistant to corrosion and wear for durability in harsh environments.

Features & Benefits

• Door allows for ease of access to your equipment
• Supplied with a mounting plate for ease of installation

Applications

• Machine manufacture
• Process control

Can I use this wall box to store large components?

This wall box has large dimensions of 1200 (height) x 800 (width) x 300mm (depth), so it's suitable for storing either a large component or multiple small components.
