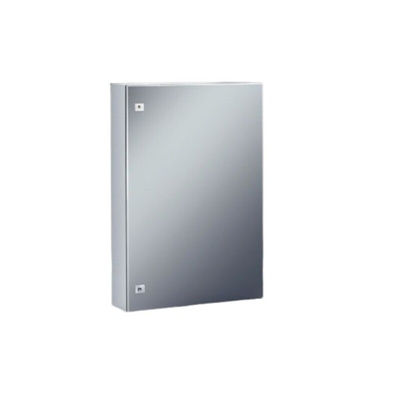

1016600, Rittal AE Series 304 Stainless Steel Wall Box, IP66, 1000 mm x 800 mm x 300mm, Настенный шкаф

Rittal AE Compact Enclosures

The AE series from Rittal is a compact stainless steel enclosure with an all-round foamed-in PU seal offering IP66 protection to IEC 60 529.

Protection category: IP66 to IEC 60 529, NEMA 4X and IK08
Stainless steel 1.4301 (AISI 304) enclosure and door
Door opening angle approx. 130°

Enclosure Canopy - available separately

Stock no. 457-1067 is for enclosure size W 300 x D 210 mm
Stock no. 457-1073 is for enclosure size W 500 x D 210 mm
Stock no. 457-1023 is for enclosure size W 200 x D 155 mm
Stock no. 457-1045 is for enclosure size W 380 x D 210 mm

Black Plastic Handles - available separately

Stock no. 457-1095 is a handle with lock cylinder insert, lock no. 3524 E (cannot be used with stock no. 784-6171)
Stock no. 860-4506 is a handle and casing, without lock cylinder insert
Stock no. 860-4524 is a handle and casing, with lock cylinder insert, lock no. 3524 E

Approvals

UL, CUL, TUV, CSA and Lloyds Register of Shipping.

Rittal Stainless Steel Wall Box, 800mm Width, 1000mm Height - AE Series - 1016600

Use this secure wall box from Rittal to protect and store valuables and equipment. The robust 304-grade stainless steel material is robust and corrosion-resistant to withstand use in heavy-duty industrial environments. The steel door shields the contents from view to enhance security in your workplace. Its dimensions of 1000 (height) x 800 (width) x 300mm (depth) provide ample room for storing a variety of items, such as keys or electrical switches.

Features & Benefits

• Cam lock to prevent unauthorised access to the contents of the box
• Wall bracket installation for simple and secure mounting
• Door opens at a 130° angle for ease of access to the interior of the box

Applications

• Industrial work areas
• Electrical control rooms
• Apartment complexes

Can I use this wall box in damp or dusty environments?

Yes, this wall box has a foamed-in polyurethane (PU) seal around the opening to prevent dust, moisture and other contaminants from entering the box. It also has an IP66 (ingress protection) rating, indicating that it's fully shielded against dust and protected against high-pressure water jets.

Certificate

Instructions

Datasheet

Dimension Sheet - Compact Enclosures AE

Datasheet - 1016600
