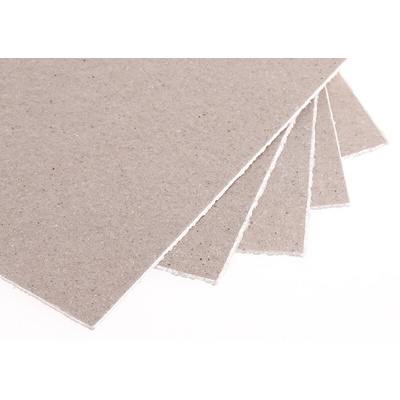

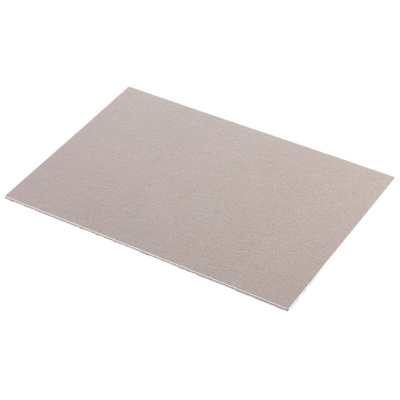

RS PRO Mica Plastic Film, 304mm x 200mm x 0.5mm

RS PRO Mica Plastic Film, 304 mm x 200 mm x 0.5 mm

This flexible and durable electrical insulating film from RS PRO provides reliable protection at temperatures of more than +500°C. The thin mica laminate plastic film is easy to cut or punch. Thanks to its layered construction, it's waterproof, lightweight and pliant.

With features such as excellent thermal properties and high tensile strength, this is a safe choice for use in high-temperature environments. This environmentally-friendly and non-toxic electrical insulating film is also resistant to flames, extreme heat and abrasion and is blister-free and creates a low amount of smoke. If kept in a dry location and at room temperature, it has an unlimited shelf life.

Commonly used in electrical and electronic applications, this mica film sheet is sold in packs of five. As part of the RS PRO range, it's been stringently tested for safety, durability and quality.

Features and Benefits

• Rigid mica plastic film sheets
• Resistance to temperatures of more than +500°C
• Dielectric strength of 25 kV/mm
• Density of 2.15 g/cm³
• Environmentally safe and non-toxic plastic film
• Length of 304 mm
• Width of 200 mm
• Thickness of 0.5 mm
• Certified by UL-94V-0 (E67143M) (flame resistance) and conforms to IEC 371-3-3 (use in heating equipment)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
