Ledil C12727_STRADA-SQ-VSM, Strada-SQ Series LED Lens, 149 → 154 ° Extra Wide Angle Beam, Светодиодная линза

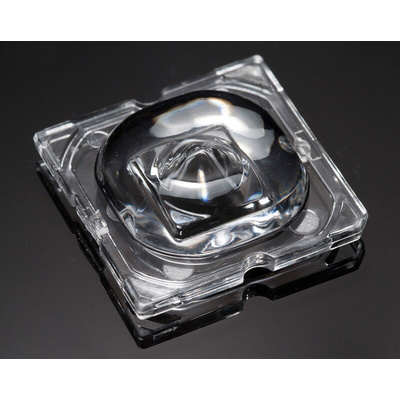

LEDiL STRADA-SQ Series LED Lenses

STRADA LED lenses were originally designed for street lighting applications. The STRADA family now includes a variety of lenses that suit a range of other applications too. The STRADA-SQ is designed for street lights and high bay applications. STRADA-SQ-CY is for low bay canopy lighting and STRADA-SQ-FS is for tunnel lighting.
The STRADA-SQ lenses all share the same footprint (25 x 25 mm) offering interchangeability between lenses without having to redesign it. They offer easily installation using an adhesive tape.
Made using an optical grade PMMA, the STRADA-SQ lenses offer a high UV and temperature resistance. STRADA-SQ lenses have been designed and optimised for use with Cree MK-R and Lumileds LUXEON M LEDs. However due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.

Note

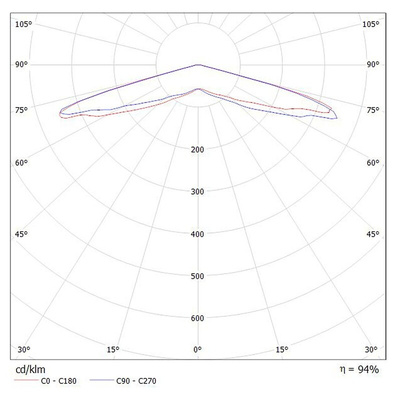

The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.

LEDiL Street Lighting LED Lenses

The Street Lighting range from LEDiL is designed for applications where the lens is mounted at a height. This includes street lamps, road lighting or warehouse aisle lighting.

LEDil Strada-SQ Series LED Assembly/Lens for use with Philips Lumileds LUXEON M LEDs Datasheet

LEDil Strada-SQ Series LED Assembly/Lens for use with Cree XM-L LEDs Datasheet

LEDil Strada-SQ Series LED Lens for use with Cree XP-G2 LEDs Datasheet

LEDil Strada-SQ Series LED Assembly/Lens for use with Cree XT-E LEDs Datasheet

STRADA Lens Guide

Lens & Reflector Buyer's Guide
