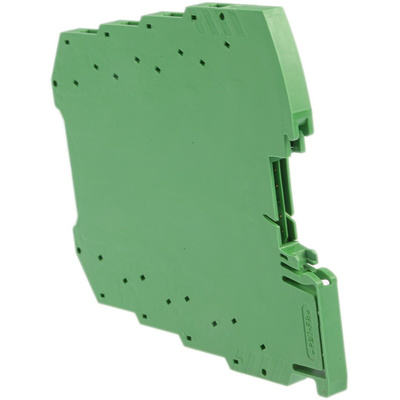

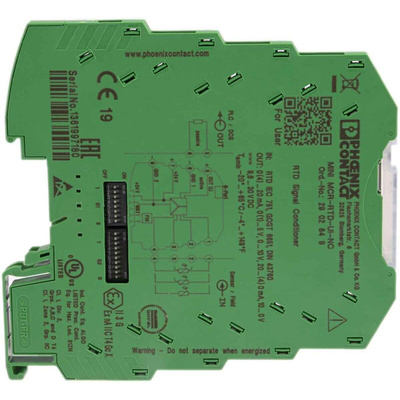

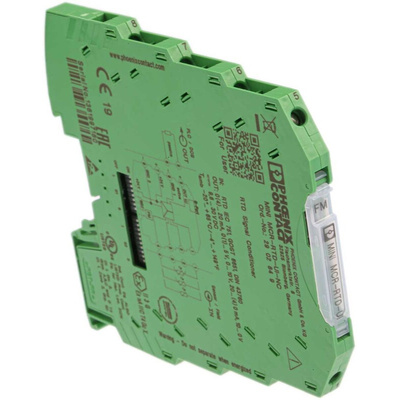

2902849, Phoenix Contact 3RS7025 Series Signal Conditioner, RTD Input, Current, Voltage Output, 9.6 → 30V dc Supply, ATEX

Phoenix Contact Signal Conditioner, Temperature Transducer Type, 50V AC/DC Rated Insulation Voltage - MINI MCR-RTD-UI-NC - 2902849

Need to keep an eye on the temperature in your facility? Link up conductor resistance thermometers and sensors in a jiffy with this signal conditioner from Phoenix Contact. It uses three-way isolation, making it ideal for devices featuring two, three and four-conductor connection technology. This product processes measurements between -200°C and +850°C to suit your heavy-duty industrial setup. Having gathered the data, it converts it into a straightforward voltage or current that your PLC can use.
Configuration is a cinch, thanks to the free software provided. Alternatively, you can make manual adjustments with the DIP switches. With the help of this signal conditioner, you can give your automation machinery the ability to detect and react based on temperature or resistance inputs. Rest easy, as you can also deploy it to monitor for faults to ramp up your system's productivity.

Features & Benefits

• Snaps directly onto a standard 35mm DIN rail for quick installation
• Consumes just 700mW of power, making it an energy-efficient option
• Low 20mVpp ripple minimises signal distortions
• Screw connection allows for speedy wiring
• Performs reliably in an ambient temperature range of -20°C to +65°C
