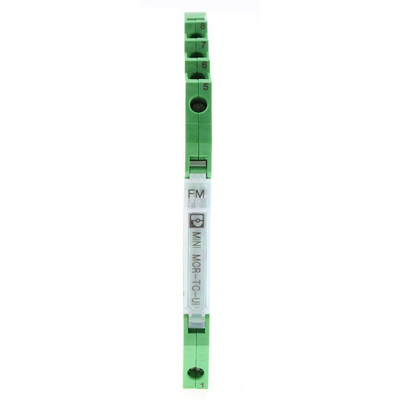

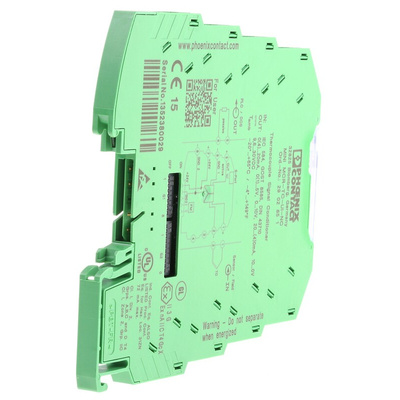

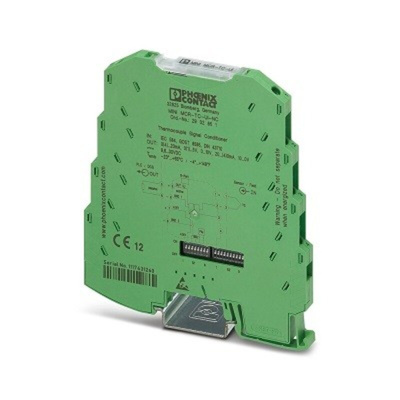

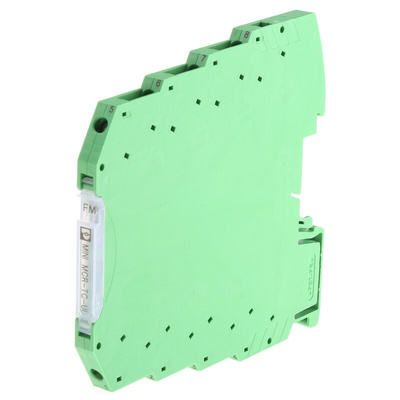

2902851, Phoenix Contact 3RS7025 Series Signal Conditioner, Thermocouple Input, Current, Voltage Output, 9.6 → 30V dc

Phoenix Contact Signal Conditioner, 12mm Stripping Length, M3 Screw Thread - MINI MCR-TC-UI-NC - 2902851

Pick up this signal conditioner from Phoenix Contact to modify raw data into actionable intel. It converts temperature measurements obtained from thermocouples into a linear current or voltage signal. As the device measures temperatures between -250°C and +2500°C, you can be sure it's a good fit for cryogenic settings and extreme-heat conditions. For a tailor-made solution, you can configure it using built-in DIP switches or software. The PBT housing is flame-retardant, reducing the risk of fires and boosting safety. This material also provides chemical and impact resistance, so you can trust it to last the long haul.
The unit carries an IP20 rating, which indicates it's protected from objects up to 12.5mm, including your fingers, meaning you can handle it without risking a shock. Thanks to space-saving dimensions of 6.2 (W) x 93.1 (H) x 102.5mm (D), the conditioner slots neatly onto a busy DIN rail. You'll find it used in applications such as industrial automation and energy management.

Features & Benefits

• Screw connection for secure installation
• Mounts in any position to suit your setup
• Red LED status indicator simplifies troubleshooting
• Green colour for easy visibility on the rail
