2902958, Phoenix Contact Voltage Transducer, 0 → 30 V Input, Maximum of 29.2 V Output

MCR Power Terminal Block

The MINI MCR-SL-PTB-FM(-SP) power terminal is used to supply the supply voltage to the DIN rail connector.
Two separate voltage inputs allow for redundant voltage supply, which is decoupled from diodes, up to a maximum current of 2 A.
The MINI MCR-SL-PTB-FM(-SP) power terminal provides the following functions:
– Monitoring in conjunction with the MINI MCR-SL-FMRC-NC fault monitoring module (RS stock-no.: 785-7799) or MINI MCR-SL-FM-RC-SP-NC (RS stock-no.: 785-7793)
– Flexible redundant supply from one or both module sides

Approval for Ex-zone 2 (nA)
Screw or spring-cage connection are available:
Screw connection (RS stock-no. 785-7787)
Spring-cage connection(RS stock-no. 785-7796)
DIN rail mounting

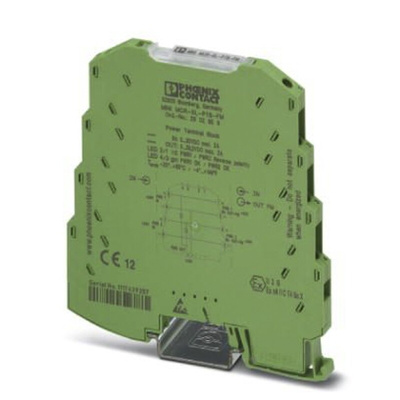

Power terminal block - MINI MCR-SL-PTB-FM - 2902958
