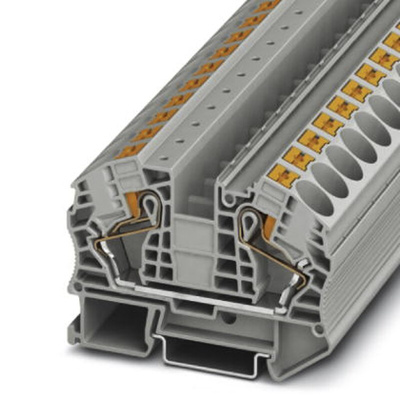

3212138, Phoenix Contact PT 16 N Series Grey Feed Through Terminal Block, 16mm², Single-Level, Push In Termination, ATEX, IECEx

PT 16 N Feed Through Terminal Blocks with Push-in Terminals

Feed through terminal blocks
Push-in connection
Conductor cross section: 0.5 mm² to 25 mm² (AWG 20 - 4)
Width: 12.2 mm
Mounting type: NS 35/7,5, NS 35/15
Colours: grey (785-8235); blue (785-8244); green/yellow (785-8247)

Phoenix Contact Feed-Through Terminal Block, 0.5 to 25mm² Conductor CSA, 90A Maximum Load - PT 16 N - 3212138

Join cables safely with this feed-through terminal block from Phoenix Contact. A wide connection range between 0.5 and 25mm² cross-sections means it easily connects devices of different sizes. Designed with push-in termination for cables with ferrules, the unit quickly achieves a secure connection between your conductors to maintain the efficiency of your equipment. As the block doesn't permanently join your wires, it's simple to adjust your setup when needed.
With a voltage rating of 1kV, the block handles intense electrical loads found in demanding applications. It mounts onto DIN rails with heights of both 7.5 and 15mm, so is versatile, and has a slim width of 12.2mm so you can maximise space in your system. Insulating polyamide housing reduces the risk of damage caused by power spikes and short-circuits.

• Supports both stranded and solid conductors for wide compatibility across devices
• UL-certified as flammability class V0 to signal a high resistance to burning
• Plug-in termination meets IEC 60947-7-1 standards to ensure a reliable connection

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

Push in terminal block 20-4 AWG Grey
