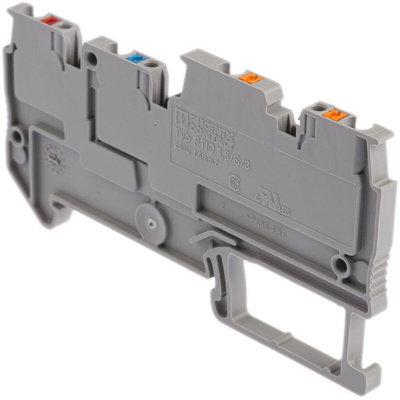

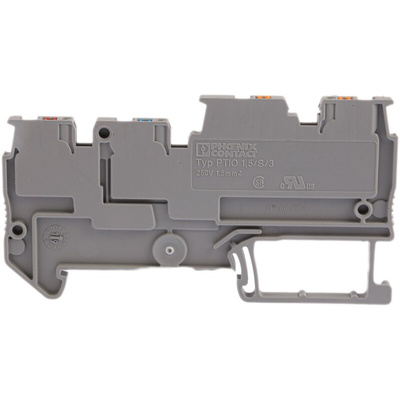

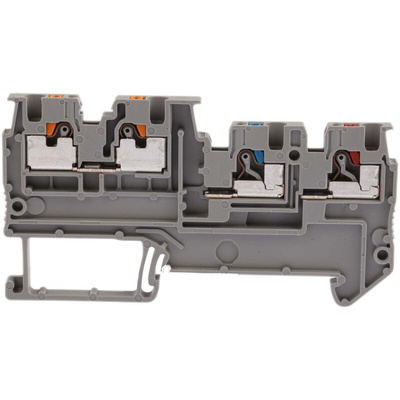

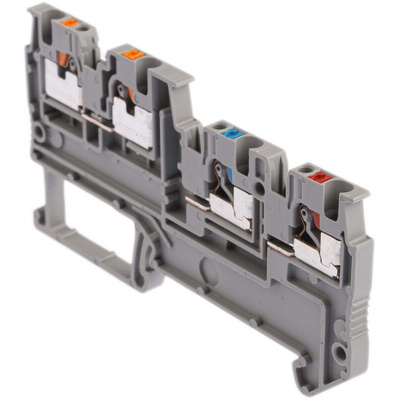

3244410, Phoenix Contact PTIO 1.5/S/3 Series Grey DIN Rail Terminal Block, 1.5mm², Triple-Level, Push In Termination

Phoenix Contact DIN Rail Terminal Block, 250V Voltage Rating, Push-In Terminals - PTIO 1.5/S/3 - 3244410

Keep your electrical system running safely with this DIN rail terminal block from Phoenix Contact. It has four contact points arranged over two levels, so you get multi-circuit control in a single unit. Thanks to its durable polyamide housing, you can rest assured that it won't give in to the impact and abrasion that's expected in harsh environments. This material also boosts safety by acting as an insulator to protect you from electric shocks during operation.
Push-in termination lets you quickly connect wires to the block without tools, saving time and hassle. It can accommodate wire sizes ranging between 26 and 14AWG, so it's a versatile workmate. A current rating of 13.5A makes it a practical choice for high-power-consuming applications, which is why you'll find it used in data centres and medical equipment.

Features & Benefits

• UL 94-V0 rating indicates that it stops burning in 10 seconds or less in the event of a fire
• Surge voltage rating of 4kV, so it can handle power spikes
• Maximum power dissipation of 0.77W means it will emit little heat and consume minimal energy

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
