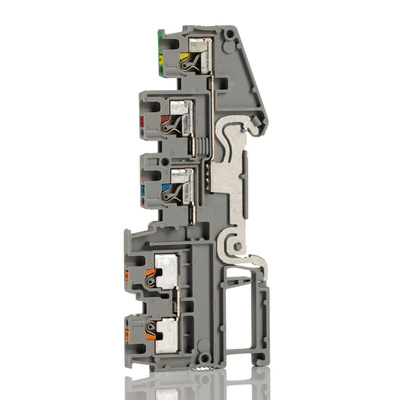

3244465, Phoenix Contact PTIO 1.5/S/4-PE Series Grey DIN Rail Terminal Block, 1.5mm², Quadruple-Level, Push In Termination

Phoenix Contact DIN Rail Terminal Block, 4 Row, Push-In Connection - PTIO 1.5/S/4-PE - 3244465

Choose this DIN rail terminal block from Phoenix Contact for the safe wiring of control systems in your industrial equipment. It comes with four potential levels that you can use to create up to five connections, reducing the cabling needs of your circuit and supporting a more compact setup. Polyamide housing offers impact and abrasion resistance, making this unit useful in harsh conditions. The material is also an insulator to protect you from electric shocks and ensure safe handling.
This terminal block features push-in connection technology that lets you terminate your conductors without using any tools, saving installation time. Its 13.5A-rated current makes it a practical choice for high current-consuming applications. Because it has a rated surge voltage of 4kV, you can rest assured that the unit won't be damaged by sudden voltage inrushes in volatile settings. You'll find it used in the automation industry, as well as in mechanical engineering workshops.

Features & Benefits

• Wide operating temperature range of -60°C to +105°C for use in demanding conditions
• Conforms to IEC 60947-7-1 standards regarding terminal blocks with screw-type or screwless clamping units
• Narrow width of 3.5mm for installation in confined spaces

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

Installation ground terminal block

Line Drawing - 3244465
