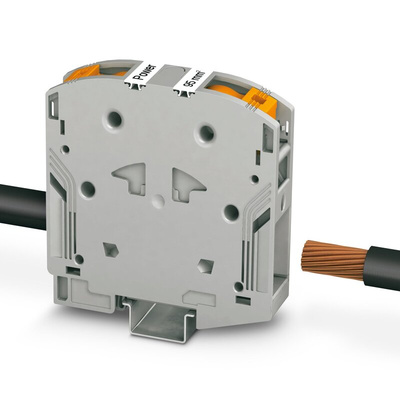

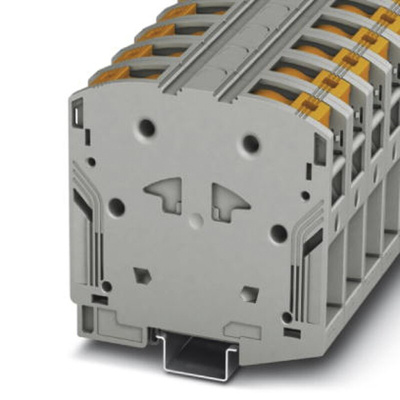

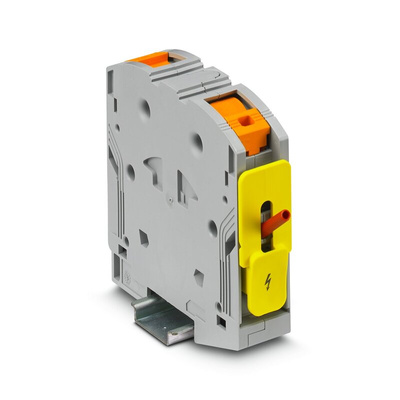

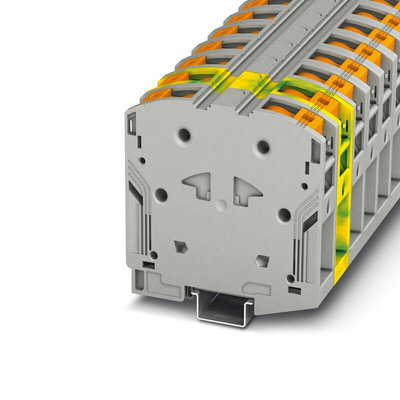

3260100, Phoenix Contact PTPOWER 95 Series Grey DIN Rail Terminal Block, 95mm², Single-Level, Push In Termination, ATEX, IECEx

Phoenix Contact DIN Rail Terminal Block, 8kV Rated Surge Voltage, 232A Maximum Current - PTPOWER 95 - 3260100

Use this Phoenix Contact terminal block as the connecting link between multiple wires on your DIN rail. With a maximum load current of 232A, it's your reliable go-to for high-current-consuming circuits. The unit has push-in slots for a tool-free installation, saving time and effort. It can function optimally in a temperature range between -60°C and +110°C, so you won't find it under the weather in extreme conditions.
Thanks to durable PA housing, this component can withstand the rigours that go hand-in-hand with harsh industrial environments. Its voltage rating of 1000V makes it your trusty workmate for high-voltage settings. As it has a surge voltage rating of 8kV, you won't get caught out by sudden heavy power spikes when using it in applications like plant engineering and machine building.

• Can accommodate conductors with cross sections between 25 and 95mm² for versatility
• Low power dissipation of 7.54W for energy efficiency and increased productivity
• UL94 V-0 rating indicates that burning stops in 10 seconds in the event of a fire

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

High Current Connectors - PTPOWER 95 - 3260100

Installation Sheet - 3260100

Line Drawing - 3260100
