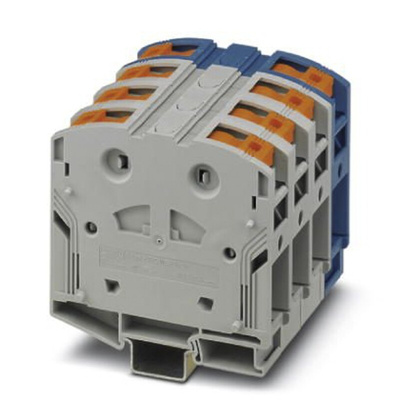

3260112, Phoenix Contact PTPOWER 95-3L/N Series Blue, Grey DIN Rail Terminal Block, 95mm², Single-Level, Push In Termination

PTPOWER95 High-Current Feed-Through Terminal Blocks

Quick and easy connection is now also possible for large conductors. With the PTPOWER 95 high-current terminal block with push-in connection, conductors up to 95 mm² can be directly contacted. Without manually opening the terminal point.

For large wires up to 95mm² and currents up to 232 Amps
Simple and easy plugging; no requirement to manually open the terminal point
Relase by simply pressing the release button with a standard screwdriver

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

Power terminal block 95mm,4 pos Grey/Blue
