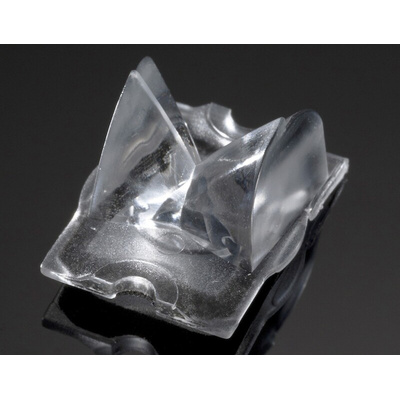

LEDiL STRADA-T Series LED Lenses

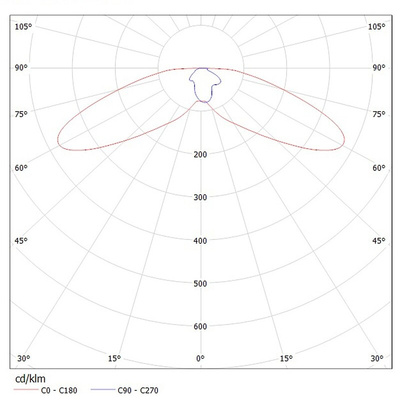

Strada-T-DN (wide batwing design) LED lenses and Strada-T-DW (wide side-emitting design) LED lenses from Ledil, are asymmetric lenses used ideally in combination to fit a wide range of applications, especially Street lighting. Being asymmetrical in the 90-270 axis and symmetrical in the 0-180 axis, allows STRADA-T lenses to direct more light on to the street side without the necessity of tilting the lamp head. With a footprint of 20 x 16mm, STRADA-T lenses can be densely packed to form arrays.
Very uniform light distribution
High optical efficiency, up to 92%
Lens material: optical grade PMMA
Note
The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED used.
LEDiL Street Lighting LED Lenses
The Street Lighting range from LEDiL is designed for applications where the lens is mounted at a height. This includes street lamps, road lighting or warehouse aisle lighting.
Техническая спецификация
LEDil Strada-T Series LED Lens for use with Sharp Double Dome (GM2BB) LEDs DatasheetLEDil Strada-T Series LED Lens for use with Philips Lumileds LUXEON A LEDs DatasheetLEDil Strada-T Series LED Lens for use with Philips Lumileds LUXEON Rebel ES LEDs DatasheetLEDil Strada-T Series LED Lens for use with Philips Lumileds LUXEON Rebel LEDs DatasheetLEDil Strada-T Series LED Lens for use with Philips Lumileds LUXEON T LEDs DatasheetLEDil Strada-T Series LED Lens for use with Nichia NCSxx19A LEDs DatasheetLEDil Strada-T Series LED Lens for use with Nichia NVSxx19A LEDs DatasheetLEDil Strada-T Series LED Lens for use with Osram Oslon Square PC LEDs DatasheetLEDil Strada-T Series LED Lens for use with Osram Oslon SSL 150 LEDs DatasheetLEDil Strada-T Series LED Lens for use with Osram Oslon SSL 80 LEDs DatasheetLEDil Strada-T Series LED Lens for use with Cree XP-E LEDs DatasheetLEDil Strada-T Series LED Lens for use with Cree XP-G LEDs DatasheetLEDil Strada-T Series LED Lens for use with Seoul Z5 LEDs DatasheetSTRADA Lens GuideLens & Reflector Buyer's Guide| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
