Ledil CA12050_STRADA-FT, Strada-Forward Series LED Lens, Street Lighting Beam, Светодиодная линза

LEDil STRADA-Forward Series LED Lenses

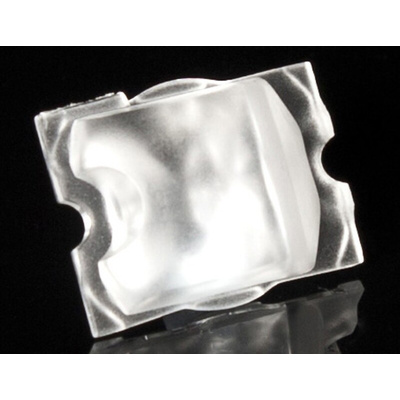

The STRADA_Forward series, from LEDil, are asymmetric forward throwing LED lenses designed for a wide variety of applications. Being asymmetrical in the 90-270 axis and symmetrical in the 0-180 axis, allows STRADA-Forward lenses to direct more light on the street side without the requirement to tilt the lamp head. With the standard STRADA footprint of 20 x 16mm, these versatile LED lenses can be combined with other STRADA lenses to form tightly packed arrays designed to suit applications such as street lighting.
STRADA-Forward lenses are designed for use with LEDs from several manufacturers including: Cree, Osram Opto Semiconductors, Nichia and Philips Lumileds, however due to the rapidly changing nature of LED products; customers are advised to consult the latest manufacturer’s data for compatible LED light sources for each optic.

Lens material: optical grade PMMA

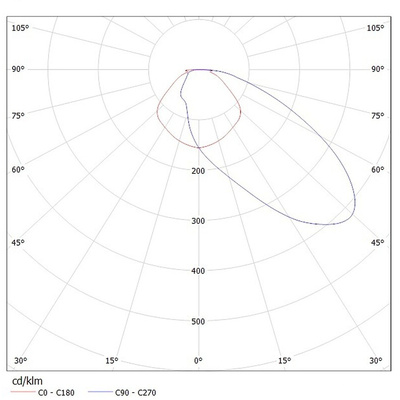

Asymmetric viewing angle

Note

The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED used.

LEDiL Street Lighting LED Lenses

The Street Lighting range from LEDiL is designed for applications where the lens is mounted at a height. This includes street lamps, road lighting or warehouse aisle lighting.

LEDil Strada-Forward Series LED Assembly for use with LG 3535 Ceramic 2W (LEMWA32) LEDs Datasheet

LEDil Strada-Forward Series LED Assembly for use with LG 3535 Ceramic 3W (LEMWA33) LEDs Datasheet

LEDil Strada-Forward Series LED Assembly/Lens for use with Sharp Double Dome (GM2BB) LEDs Datasheet

LEDil Strada-Forward Series LED Assembly/Lens for use with Philips Lumileds LUXEON A LEDs Datasheet

LEDil Strada-Forward Series LED Assembly/Lens for use with Philips Lumileds LUXEON Rebel ES LEDs Datasheet

LEDil Strada-Forward Series LED Assembly/Lens for use with Philips Lumileds LUXEON Rebel LEDs Datasheet

LEDil Strada-Forward Series LED Assembly/Lens for use with Nichia NCSxx19A LEDs Datasheet

LEDil Strada-Forward Series LED Assembly/Lens for use with Nichia NVSxx19A LEDs Datasheet

LEDil Strada-Forward Series LED Assembly/Lens for use with Osram Oslon SSL 150 LEDs Datasheet

LEDil Strada-Forward Series LED Assembly/Lens for use with Osram Oslon SSL 80 LEDs Datasheet

LEDil Strada-Forward Series LED Assembly/Lens for use with Cree XB-D LEDs Datasheet

LEDil Strada-Forward Series LED Assembly/Lens for use with Cree XP-E LEDs Datasheet

LEDil Strada-Forward Series LED Assembly/Lens for use with Cree XP-G LEDs Datasheet

LEDil Strada-Forward Series LED Assembly/Lens for use with Seoul Z5 LEDs Datasheet
