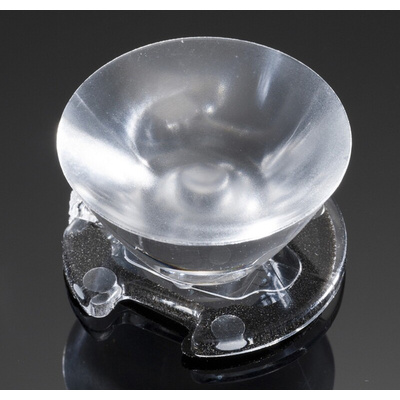

Ledil CA12062_EMILY-D, Emily Series LED Lens, 8 → 14 ° Spot Beam, Светодиодная линза

LEDiL EMILY Series LED Lenses

The EMILY series from LEDil, are a family of round LED lenses with 26 mm diameter. This range is designed for use with a single LED and come in a wide variety of options including clear or diffused. They also offer a range of beam angles from a spot to extra wide, and even an oval beam option. EMILY lens assemblies direct the light from an LED light source through the lens to achieve the desired beam emission type.
Made using an optical grade PMMA, the EMILY lenses offer a high UV and temperature resistance. The lenses have positioning pins for location and they fasten in place with automotive grade PU foam adhesive tape.
EMILY lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.

Note

The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.

LEDiL Single LED Lenses

LEDil Emily Series LED Assembly for use with Philips Lumileds LUXEON A LEDs Datasheet

LEDil Emily Series LED Assembly for use with Philips Lumileds LUXEON Rebel ES LEDs Datasheet

LEDil Emily Series LED Assembly for use with Nichia NS9x383 LEDs Datasheet

LEDil Emily Series LED Assembly for use with Cree XM-L HVW LEDs Datasheet

LEDil Emily Series LED Assembly for use with Cree XM-L2 LEDs Datasheet

LEDil Emily Series LED Assembly for use with Cree XM-L LEDs Datasheet

LEDil Emily Series LED Assembly for use with Cree XP-E2 LEDs Datasheet

LEDil Emily Series LED Assembly for use with Cree XP-G2 LEDs Datasheet

LEDil Emily Series LED Assembly for use with Cree XT-E LEDs Datasheet

Lens & Reflector Buyer's Guide
