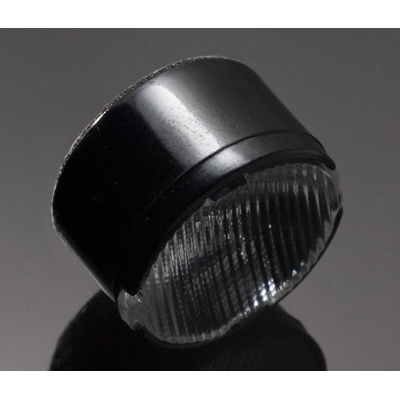

Ledil CA12379_TINA2-O, Tina2 Series Lens Assembly, 38 + 13 ° Oval Beam

7861871
Номер производителя: CA12379_TINA2-OПроизводитель: Ledil
Цена за шт. (норма упаковки 4 шт)
331.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

LEDiL TINA2 Series LED Lenses

The TINA2 series from LEDil, are a family of round LED lenses with 16 mm diameter. There are two types of lens within the TINA2 family, one with a black PC holder and one with a white PC holder. This range is designed for use with a single LED and come in a wide variety of options including clear or diffused. They also offer a range of beam angles from a spot to extra wide, and even an oval beam option. TINA2 lenses direct the light from an LED light source through the lens to achieve the desired beam emission type with a uniform output.
Made using an optical grade PMMA, the TINA2 lenses offer a high UV and temperature resistance. They are fastened using an adhesive tape. TINA2 lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.

The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.

LEDiL Single LED Lenses

Техническая спецификация
pdfLEDil Tina2 Series Assembly for use with LUXEON Z ES LEDs Datasheet
pdfLEDil Tina2 Series Assembly for use with Osram SFH 4715S (IR) LEDs Datasheet
pdfLens & Reflector Buyer's Guide
Высота:
9.5мм
Диаметр:
16мм
Комплект поставки:
Держатель, Линза
Прозрачный или рассеянный:
Diffused
Размеры:
16 (диаметр) x 9.5мм
Серия:
Tina2
Структура выбросов:
Овальный
Тип продукта:
LED Lens & Holder
Угол обзора:
38 + 13 °
