RS PRO 5 Pole Din Plug, 2A, 100 V ac, Twist Lock, Male, Cable Mount, Разъем

Metal Twist Lock Cable Plugs

5 and 8 way metal twist lock cable plugs
5 way available as 180 786-3441 or 240° 786-3445
8 way available as 270°

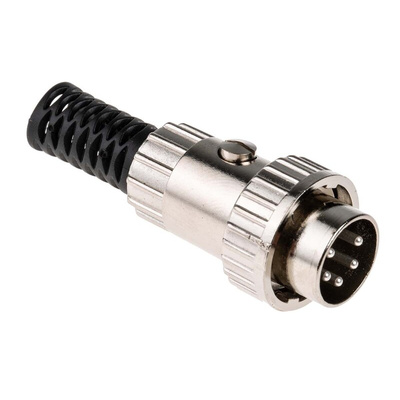

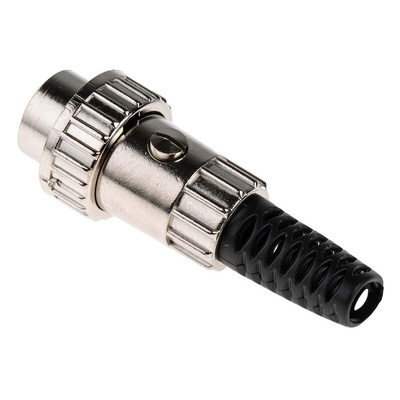

RS PRO 5 Pole DIN Plug, 2A, 100V AC, Twist Lock

Need a solder-free DIN plug for audio applications? With screw-down termination, the RS PRO 5-pin DIN plug achieves tight wire connections without the need for special tools. Simply strip the cables, insert fully into the housing and screw down the wires to the receptacles. Turn the lockring to twist-lock and secure the two halves of the connector.

This standard 5-pin DIN plug is available in both 180° and 240° configurations and is designed for cable mount applications. The housing is made of die-cast nickel and the contacts are silver-plated to ensure good overall resistance to corrosion and rust. Part of the RS PRO range, the product is strictly tested for quality.

Apart from analogue and some digital audio applications, DIN connectors are commonly used in computer peripherals such as older AT-style keyboards.

Features and Benefits

• Male 5-pin DIN connector
• Standard size cable mount connector with twist lock
• Current rating of 2 A
• Voltage rating of 100 V
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (handled and packaged in environments that minimise damage due to electrostatic discharge)
