RS PRO Panel Mount PID Temperature Controller, 72 x 72mm, 3 Output SSR, 230 V ac Supply Voltage ON/OFF, PID Controller, Регулятор температуры

RS PRO DIN Rail PID Temperature Controller, 72 x 72 mm, 3 Output SSR, 230 V ac Supply Voltage On/Off, P, PD, PI, PID

Process temperatures out of sync? This DIN rail PID (proportional integral derivative) controller from the RS PRO range uses a control loop mechanism to help equipment run at the correct temperature.

Basic devices send heating signals only when process temperatures fall below an acceptable range. PID controllers are more advanced, using a mathematical formula to ensure process temperature remains as close to the user setpoint as possible.

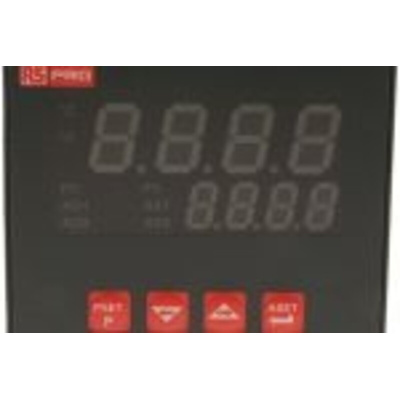

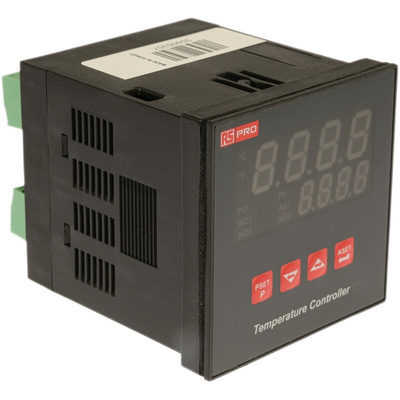

This controller has a clear multi-line display, with simple four-button operation on the front panel. Once you’ve entered a setpoint, the controller responds to sensor feedback to regulate the process temperature of hooked-up equipment. The DIN rail mount is space-saving and provides flexible mounting options.

Designed to offset sudden fluctuations, this controller is suitable for use in specialised industries, from petrochemistry and food production to the tempering of industrial parts. It has a dust-tight IP65 rating and is RoHS-certified against hazardous materials.

Features and Benefits

• SSR and relay output type
• DIN rail mounting type
• Three outputs
• Supply voltage of 230 V ac
• 72 x 72 mm
• Panel depth of 84 mm
• Temperature range of -200°C to +1700°C depending on thermocouple
• Multi-line display
• Input types RTD, Universal Input TC, Voltage/Current (dc)
• Selectable alarm functions for alarm output
• Control types on/off, P, PD, PI, PID controller
• Additional functionality on/off
• Communication module not available

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
