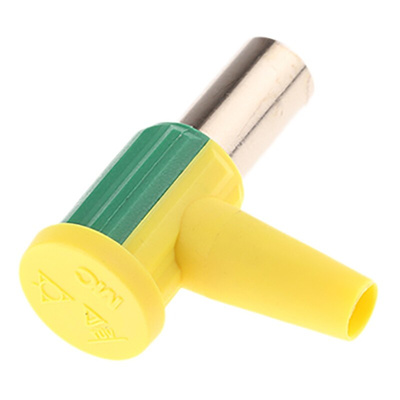

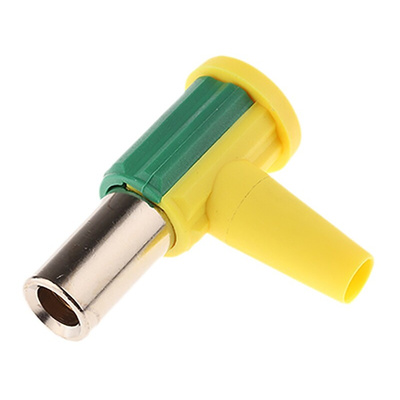

55.3220-20, Staubli Connector Socket for use with Potental Equalisation Lead

Multi Contact Potential Equalisation Socket

The Multi-Contact potential equalisation socket is a type of self-assembly connector for the creation of potential equalisation leads. This socket connector is made from a hand-drawn copper alloy which has been gold plated and has 4mm2 cable cross-section. This potential equalisation connector, once assembled as equipotential lead is designed to equalise potentials between different metal parts that can be touched simultaneously or to reduce differences of potential that can occur during use between the bodies of medical electrical devices and conductive parts of other objects.

Features and Benefits

Screw connection by means of a standard 2mm Allen key
Nickel-plated socket and gold-plated Multilam for dependable and durable contact

Applications

Hospitals
Stationary site installations
Medical instruments

Certifications

TUV certified
DIN 42801 Part 2
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

POAG Potenial Equalisation Connectors and Leads Data Sheet
