55.3200-300-20, Staubli Test Lead Wire

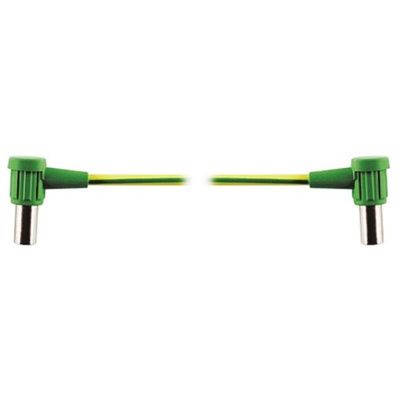

Multi-Contact POAG Potential Equalisation Leads with Right Angle Connector Sockets

Multi-Contact POAG potential equalisation leads are highly flexible green/yellow coloured wire equipotential leads complete with a spring loaded right angle moulded POAG connector socket on each end, available in differing lengths and cable cross sections to suit many applications.These POAG equalisation potential leads are designed to equalise potentials between different metal parts that can be touched simultaneously or to reduce differences of potential that can occur during use between the bodies of medical electrical devices and conductive parts of other objects, designed for use in hospitals and other similiar facilities, conforming to DIN 42801 Part 2 standards.

Screw connection is simply effected by means of a standard 2mm Allen key (no special tool needed)
Nickel-plated socket and gold-plated Multilam for dependable, durable contact
Designed in accordance with DIN 42801 part 2

Standards

DIN 42801 Part 2

Multi-Contact POAG Potential Equalisation Connectors and Leads

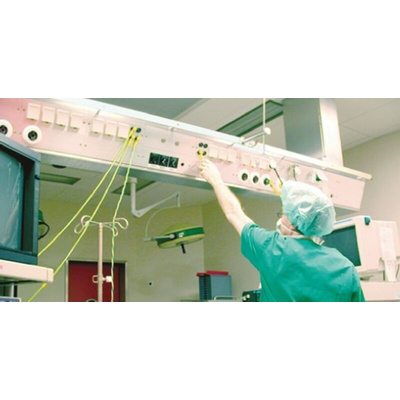

Multi-Contact POAG self assembly connectors and potential equalisation flexible leads are designed for use In hospitals and medical installations where patients and staff are subjected to dangerous, uncontrollable compensating currents flowing between equipment and touchable conducting parts of different voltage potentials, the answer to this problem is the installation of a seamless equipotential grounding system. Multi-Contact POAG connectors and potential equalisation leads are ideal for stationary site installations and medical instruments along with mobile equipment which is equipotentially grounded with angled socket leads to specially contoured plugs attached to the equipotential network.

Connecting Leads for Potential Equalization Data Sheet
