NANODAC/VL/C/X/LRR, Eurotherm NANODAC/VL/C, 4 Channel, Graphical Chart Recorder, Диаграммный самописец

nanodac - Chart Recorder

The nanodac^TM recorder/controller offers the ultimate in graphical recording combined with PID control for a box of its size.
This secure data recording device with accurate control is enhanced by a full colour, VGA display to bring a crystal clear operator interface to even the smallest of machines.
The 3.5” TFT display offers incredibly clear visualisation of process parameters with a wide selection of configurable views to best suit the application.

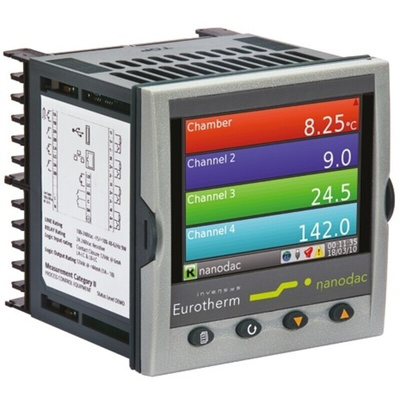

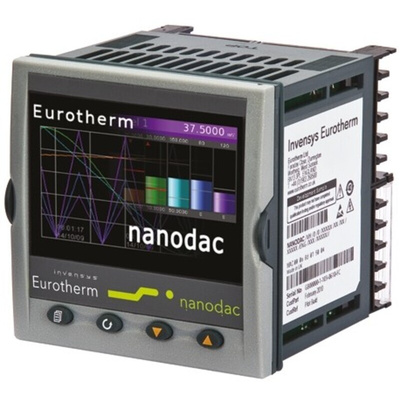

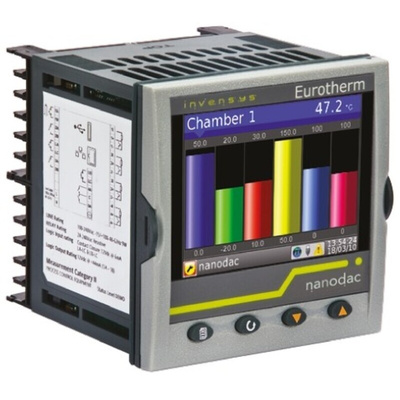

The views include: Horizontal and vertical trends, Horizontal and vertical bar graphs, Numeric, Alarm panel, Alarm status, and control loops.

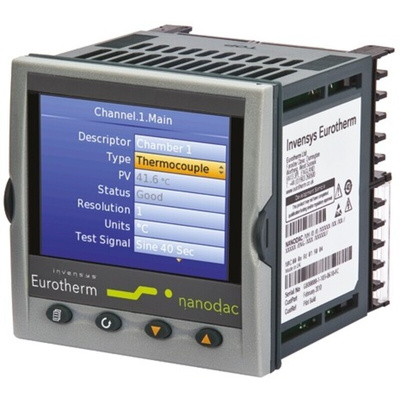

The unit also provides user wiring from the front of the product for detailed configuration without the need to connect to a PC.

Secure data recording
High accuracy universal inputs
2 PID control loops (Stock-no. 777-6729 and 786-5567 )
USB removable data storage facility
50MB flash memory
Ethernet communications
Modbus TCP/IP slave (Stock-no. 811-3393 and 811-3397)
3.5” TFT VGA crystal clear display
30 virtual channels
Multiple I/O options
Cascade with auto-tune
Multi-language (English, French, German, Italian and Spanish)
Compact design
Wash down front (Stock-no. 811-3393 and 811-3397)
1/4DIN panel mount
