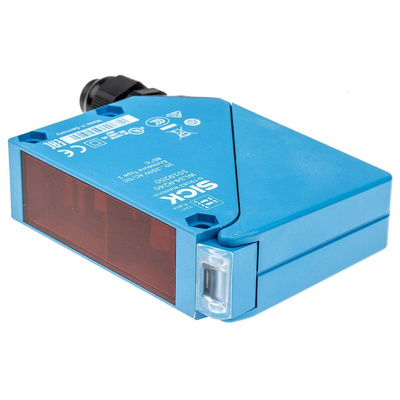

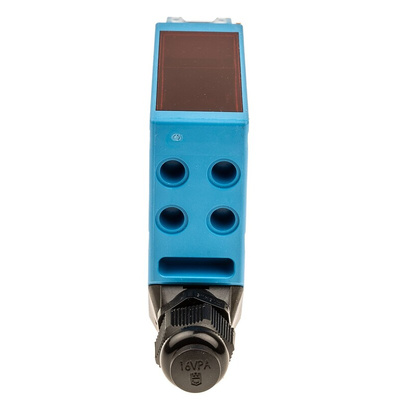

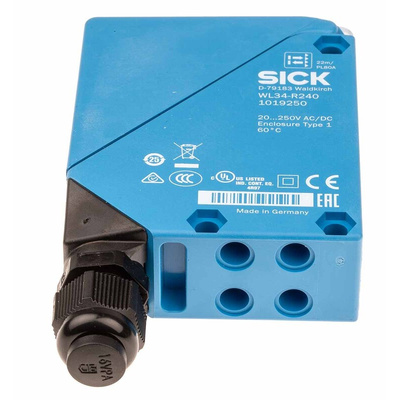

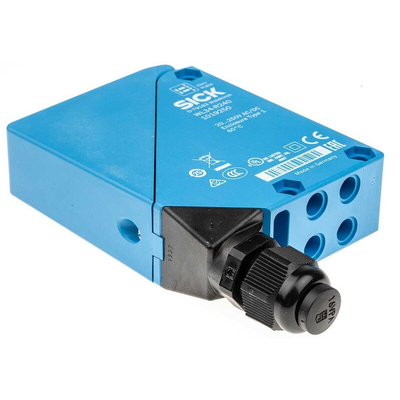

WL34-R240, Sick Retroreflective Photoelectric Sensor, Block Sensor, 30 mm → 22 m Detection Range, Фотоэлектрический датчик

Sick Photoelectric Sensor - W34 Series

Sick's W34 photoelectric sensor is brought to you in a compact, miniature housings with a termination type of an M16 gland. This photoelectric sensor is suited for applications where mounting space is restricted. Created and designed to detect and measure physical objects or quantities through emitting (sensing) a field or beam of electromagnetic radiation, an object is detected through measuring alteration in the return.

Features & Benefits

• Forms part of Sick's W34 photoelectric sensor range
• Comprised of a strong and robust plastic material
• The enclosure has an IP rating of IP67, this means that the enclosure is protected against dust and is completely dust-tight. This rating also means that the enclosure has moisture protection against full immersion for up to 30 minutes at depths between 15cm and 1m
• Light and dark switching modes
• The dimensions are W27mm x H92mm x D70mm
• Adjustments can be made via the potentiometer
• The delay time can be adjusted via time delay selector switch
• The supply voltage of the sensor is 20V AC/DC - 250 V AC/DC

Note

For retro-reflective sensors a suitable reflector is required.
For PL80A, PL30A & C110 reflectors see stock nos. 265-2776, 265-2760 & 265-2748 respectively.

Datasheet
