RS PRO Ball Latch Kit, BPS, , Minimum of 15 mm Strut Profile

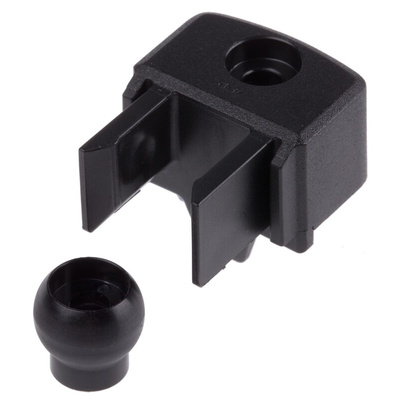

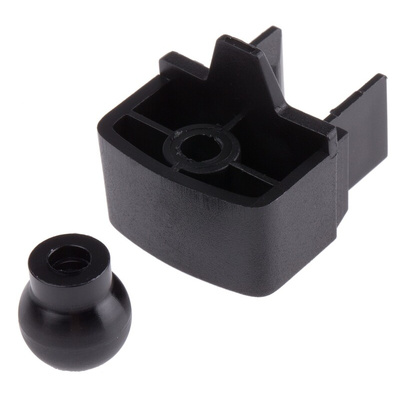

RS PRO Ball Shaped Door Lock

Use this superb open-and-close mechanism on all your hinged and sliding doors. This ball-shaped door lock is made from techno-polymer which is resistant to solvents, oils and greases. During application, the clamp is fixed to the frame while the ball is attached to the door. Once the 2 elements meet the clamp grips securely and stops door movement. This device has been tested over 20.000 cycles and constantly performs without fault.

Features and Benefits

• Techno-polymer material


• Colour: Matte finish


• Resistant to solvents, oils, greases, and other chemical agents


• Easy locking


• Tested through 20,000 cycles


• Suitable for shutter doors and sliding doors


• Easy installation with 2 screws


• Lubrication not required

Applications

• Kitchen


• Bathrooms


• Utility rooms

Note

• Minimum profile suitability = 15 mm


• Distance between door and frame: 2.5 mm and 3.5 mm

RS Structural System Profile Accessories

RS Structural System Profile Accessories include Cube Connectors, T-slot Nuts, Ball Catches, Turn Locks, Self Tapping Screws, Earthing Terminals, Cover Caps, and many other items. RS Structural System Profile Accessories are entirely compatible with Item Profile 6 and Profile 8 structural system components. RS Profile accessories are suitable for general workplace furniture system construction, offering light-weight, strong, easily interchangeable elements for a variety of profile types. The RS Structural System Profile Accessories form part of a modular system of components that may be constructed to form a wide variety of furniture structures, such as guarding enclosures, work benches, general enclosures, and other workplace fixtures.

RS Pro Datasheet
