S8VK-C12024, Omron S8VK-C Switch Mode DIN Rail Power Supply, 90 → 350 V dc, 100 → 240 V ac ac, dc Input, 24V dc dc, Блок питания

60W to 480W S8VK-C Series

The S8VK-C series of power supplies are a space saving single phase power supply with universal input and safety worldwide standards. An excellent power supply that provides quality, reliability and cost effective. The pwer supply is a compact design which is easy to fit and withstands harsh environments plus suns for long periods within stable conditions. This vesatile series simply clicks onto a DIN rail saving you valuable time and effort.

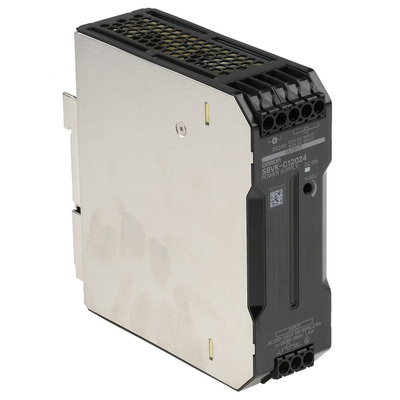

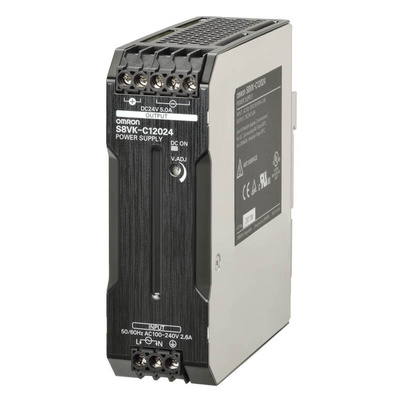

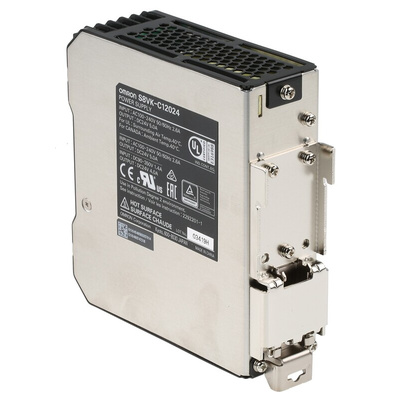

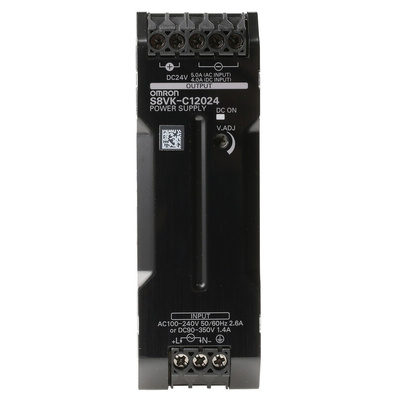

OMRON DIN Rail Power Supply, With Voltage Adjustment, IP20 Rating - S8VK-C Series - S8VK-C12024

Eager to get hold of a super-efficient PSU? This DIN rail power supply from OMRON is just the thing. It accepts universal inputs across a broad range from 85 to 264V AC and 90 to 350V DC. The unit steps these down to a carefully controlled load of 24V DC, which is handy for charging your battery-supplied kit. A power rating of 120W means this is a safe bet for tough industrial applications. An efficiency rating of 89% lets you know it wastes very little energy as heat, meaning you won't need a heatsink or fan to keep it cool.

Features & Benefits

• Tight line regulation of 0.5% maximum and load regulation of 1.5% maximum, so you get close control over input and output values
• Broad operating temperature range between -25°C and +60°C means it's safe for use in harsh settings
• Tweaking the load to suit your application is simple thanks to the unit's 10 to 15% voltage adjustment
• IP20 rating means it's safe to touch without risking a shock

Applications

• Production lines
• Building automation
• HVAC systems

How durable is this PSU?

This PSU is built of robust materials and has a mean time between failures of 490,000hrs, so you know it's a long-lasting choice.

Standards

UL508 listing, UL60950-1 recognition,
cUL: CSA C22.2 No. 107.1
cUR: CSA C22.2 No.60950-1
EN/VDE: EN50178 (=VDE0160), EN60950-1 (=VDE0805)
SELV (EN60950-1/EN50178/UL60950-1)

Datasheet
