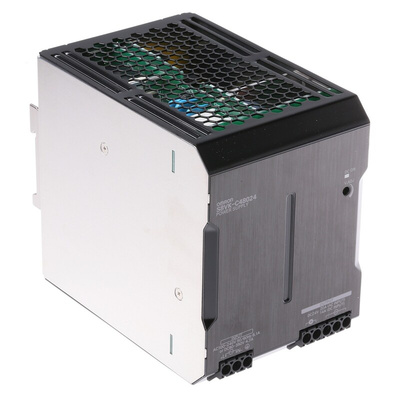

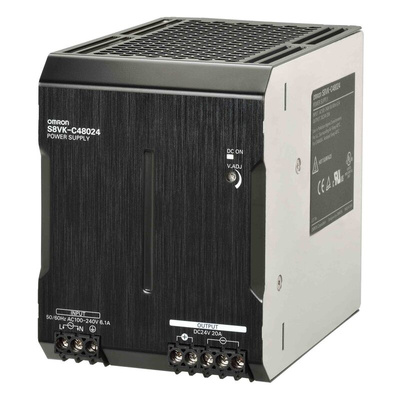

S8VK-C48024, Omron S8VK-C Switch Mode DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 24V dc dc Output, 20A Output, 480W, Блок питания

60W to 480W S8VK-C Series

The S8VK-C series of power supplies are a space saving single phase power supply with universal input and safety worldwide standards. An excellent power supply that provides quality, reliability and cost effective. The pwer supply is a compact design which is easy to fit and withstands harsh environments plus suns for long periods within stable conditions. This vesatile series simply clicks onto a DIN rail saving you valuable time and effort.

Part Number S8VK-C48024

The S8VK Switch mode, Din Rail mounted power supply is a covered type, screw single phase, compact power supply. S8VK-C48024 has a power rating of 480 W and an output voltage of 24 V dc plus a rated input voltage of 100 V ac to 240 V ac. This compact model is natural air cooling.

Features and Benefits.

•Covered type power supply
•Screw terminal
•Single phase
•DIN Rail Mounted
•Green output indicators
•Natural air cooling
•Power rating 480 W
•Output voltage 24 V dc
•Input voltage 100 V ac to 240 V ac
•Rated output current 20 A
•Efficiency 91% min.
•Overload and over voltage protection
•Compact – space saving
•Weight 1550g

Safety and Storage.

Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and secure correctly ensuring limited vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.
Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.
Shock resistance 150 m/s**2 in each 6 directions 3 times.

Standards

UL508 listing, UL60950-1 recognition,
cUL: CSA C22.2 No. 107.1
cUR: CSA C22.2 No.60950-1
EN/VDE: EN50178 (=VDE0160), EN60950-1 (=VDE0805)
SELV (EN60950-1/EN50178/UL60950-1)
