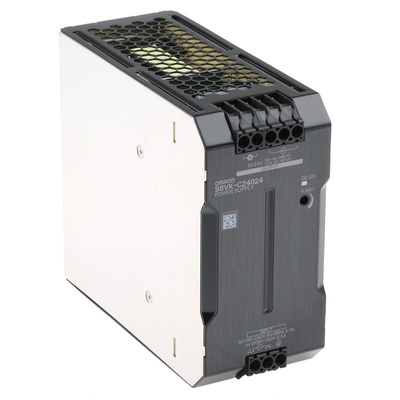

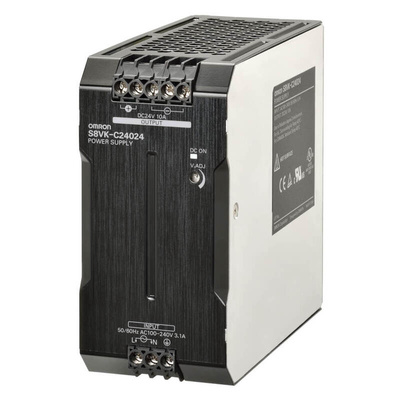

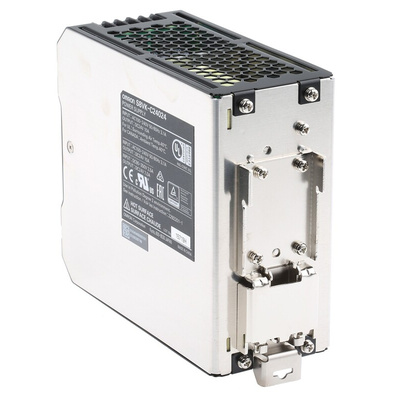

S8VK-C24024, Omron S8VK-C Switch Mode DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 24V dc dc Output, 10A Output, 240W, Блок питания

60W to 480W S8VK-C Series

The S8VK-C series of power supplies are a space saving single phase power supply with universal input and safety worldwide standards. An excellent power supply that provides quality, reliability and cost effective. The pwer supply is a compact design which is easy to fit and withstands harsh environments plus suns for long periods within stable conditions. This vesatile series simply clicks onto a DIN rail saving you valuable time and effort.

OMRON DIN Rail Power Supply, 89% Efficiency, IP20 Rating - S8VK-C Series - S8VK-C24024

When you're in the market for an ultra-efficient PSU, turn to this DIN rail power supply from OMRON. It takes any voltage in a broad universal range from 85 to 264V AC or 90 to 350V DC and steps it down to a stable output of 24V DC. This means you can use it to run sensitive battery-supplied equipment from lots of supply setups. An impressive 89% efficiency rating means this eco-friendly option doesn't waste much energy or produce excess heat. As it stays cool using natural convection, there's no need for a heatsink or fan. Handy LED indicators ensure you stay up-to-date on operating status.

Features & Benefits

• IP20 rating lets you know it's touch-safe, so you're not at risk of electric shocks when handling it
• Works efficiently in a wide operating temperature range from -25°C to +60°C
• Resists shock and vibration, meaning you can install it safely near moving machinery

Applications

• Electrical engineering
• Panel building
• Automotive manufacture

What electrical protections does this PSU offer?

Thanks to a dielectric strength rating of up to 3kV AC, as well as overvoltage and overload protection, you can trust this unit is safely insulated against surges and withstands excess voltage and overcurrent.

Standards

UL508 listing, UL60950-1 recognition,
cUL: CSA C22.2 No. 107.1
cUR: CSA C22.2 No.60950-1
EN/VDE: EN50178 (=VDE0160), EN60950-1 (=VDE0805)
SELV (EN60950-1/EN50178/UL60950-1)
