K56486GRY, MK Electric Grey 1 Gang Plug Socket, 13A, Type G - British, Outdoor Use

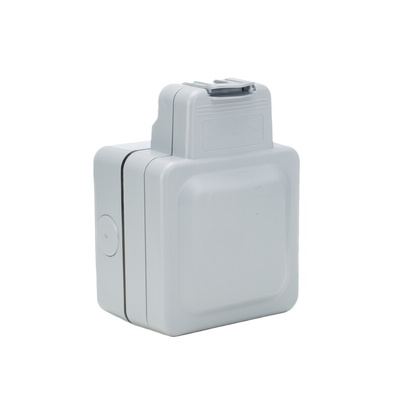

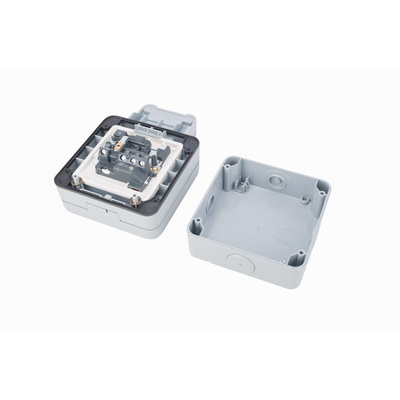

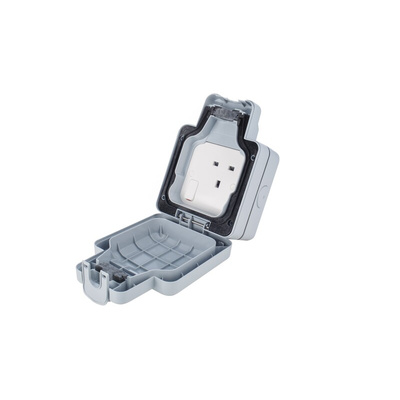

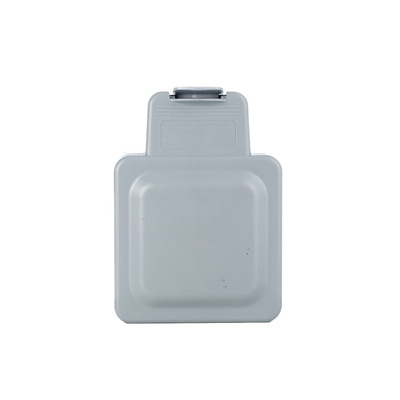

MK Electric Plug Socket

The MK Electric MasterSeal plus series 1 gang flush mount switched plug socket has a current rating of 13A and voltage rating of 250VAC. It is specifically designed to provide power and control in environments heavily exposed to dust and water splashing. It offers total dust ingress protection and is protected against high-pressure water jets from any direction. The socket can seal around virtually any standard 13A plug including moulded plugs allowing a safe connection for any appliance. An improved catch eases the opening and closing of the lid, whilst ensuring the integrity of the seal. The seal is fixed to the mounting frame of the product, enabling rapid installation and removing the risk of error when placing a floating gasket.

Features and Benefits

Terminal screws are backed out and captive
Grey in colour
Fixed gasket speeds installation
Patented gel seal
Rear drill holes
Improved catch eases opening and closing
Manufactured from recycled polycarbonate for impact and environmental protection
Type-G British
Number of poles are 2

Applications

Industrial
Commercial
Agricultural

Certifications

IP66 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet

Logic Plus series
