K2477ALM, MK Electric Black 1 Gang Plug Socket, 13A, Type G - British

13A MK Metalclad Single Gang Switched Socket with Neon

Single gang 13A BS double pole switched socket with neon indicator situated in the rocker switch

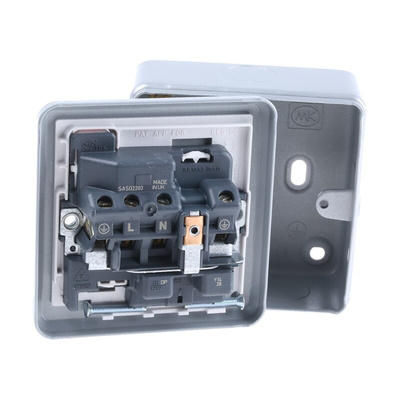

Dual earth terminals fitted in box - terminal capacity 1 x 6 mm² stranded (max)
Funnel entrance to terminals enables positive cabe connection
Tough and impact resistant
Stylish curved design
Dimensions (single gang): 86 x 86 x 51mm
Knockouts: 6 x 20mm (two in one side and one in each of the other three sides and one in base)
Supplied with K899ALM backbox
Spare backbox: Single gang: K899ALM (787-1297)

Approvals

Backbox: BS 5733: 2010
Socket: BS 1363 Pt.2: 1995
Switch: BS EN 60669-1: 1999

Standards

BS 1363 (Part 2: 1995)

MK Metalclad Plus

A comprehensive range of tough, impact resistant, surface mounted wiring devices. The products have been designed to suit a wide variety of applications in factories, workshops, plant rooms, warehouses, schools and hospitals as well as being ideal around the home in garages and sheds.

Outer casing is manufactured from tough mild steel with a scratch resistant paint finish
3-pin operated safety shutter on all sockets
Easy to install
Double pole switches on all products
Neutral contact makes first and breaks last for added safety
Minimum 3mm contact gap for safety switch isolation
Fuse carrier can be padlocked in open position for safe maintenance
Surface mounted sockets are supplied with back box; for flush mounting, a flush mount box will be required

Logic Plus series
