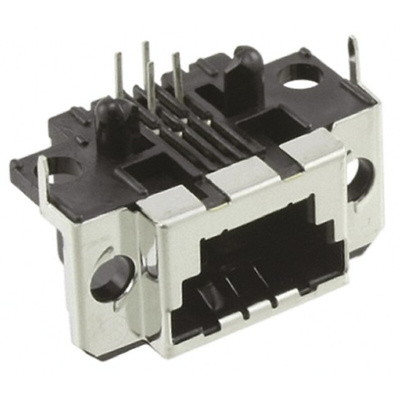

5-1761185-1, TE Connectivity Female SDL Connector, , SDL, 4 Way Solder Termination, Разъем

TE Connectivity SDL (Shielded Data Link) PCB Receptacle Connectors

SDL (Shielded Data Link) PCB side entry receptacle connectors with EMI/RFI shielded housings and PCB solder tails. These SDL (Shielded Data Link) PCB receptacles have PCB and panel grounds, black UL 94V-0 polyester housings and gold plated contacts. Integral letter coded polarization keying slots are provided to ensure the receptacles are correctly matched to the plugs. Both of these SDL receptacles have a 'Type E' keying type. Typical applications for these SDL (Shielded Data Link) PCB receptacles include data, communication and medical system interconnections. For plug assemblies see stock number 719-9444 typically.

Modular sockets

Series SS 63, 64 and 65.
A series of 4, 6 , 8 and 10 pin modular sockets for PCB mounting that meet the requirements for flawless communication and data transmission.
The sockets are made of black polyester (PE) with gold-plated phosphor bronze contacts; 30 μinch gold (Au) over 75 μinch nickel (Ni).

The series includes a number of variants:
Standard, series 63 (horizontal)
Low profile, series 64
Vertical, series 65
Unflanged, type NF
With panel stop, type FLS
With full flange, type F
With code (key)
With thicker gold plating on contacts.

SDL connector, 4 way receptacle assembly - 5-1761185-1
