09120084806, Harting, Han Power S IP65 Black Surface Mount 6P+E Industrial Power Socket, Rated At 10.0A, 600.0 V, Разъем питания

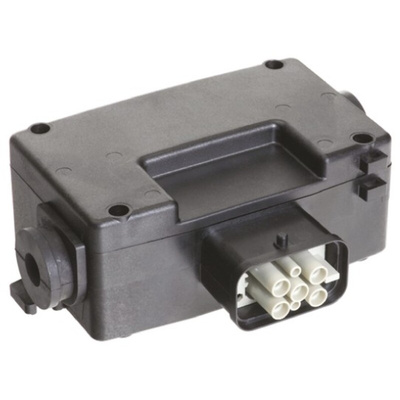

Han-Power® S Serial Bus Power Connectors

Harting Han-Power® S serial bus power connectors are suitable for adding additional power connections within an existing circuit, the outer insulation of the cable is stripped to the desired length and the wires are inserted into the Han-Power® S and tapped via the insulation displacement terminals, offering a simple and effective method of adding to an established power network.

"6 IDCs + PE for 2.5 mm² up to 4 mm² wire gauge
No interruption of the energy supply
Space-saving and compact design
Leading protective ground in Han® Q 8/0 insert
Assembled with standard tools
T-functionality for max. 500 V: - energy bus structure: 7 x 4 mm² - power supply structure: 7 x 2.5 mm²
Distribution to device can be realized with a Han Q 8/0 cable to cable housing

Standards

DIN EN 61984, DIN EN 60664-1

Harting Han-Power®

Han Power S serial bus connector 1/Q4/X
