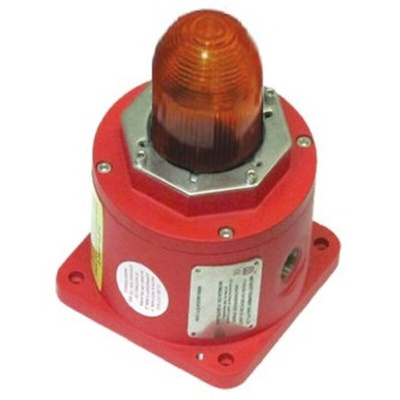

BC150AL05DCNNNARDN, Moflash BC150 Series Amber Multiple Effect Beacon, 12 → 48 V dc, Base Mount, LED Bulb, IP66, Маячок

Moflash Explosion Proof Beacon, BC150 Series

The BC150 beacon has been approved for use in potentially explosive atmospheres, hazardous areas and very harsh environmental conditions.\n
Typical applications are Oil and Gas, On-shore & Offshore, Chemical, Petrochemical, Refineries & Marine locations, etc.\n
This warning beacon has a choice of two types of light source: either Xenon (strobe) with multiple flash rate and power ratings or an LED array with three status type indication options and two power ratings. The design of this beacon allows for termination inside the enclosure.

Xenon or LED visual beacons
360° light output around the vertical axis\n
Dustproof and weatherproof
Red (RAL3001) GRP (Glass Reinforced Plastic)
Tempered glass lens
L 150mm x W 150mm x H 212mm
IP66 / IP67 protection
Temperature -40 to +70°C
Accepts upto ≤2.5mm² incorporating rising clamp protectors
Cable entry 4 x M20
Weight 3.8 kg
RoHS compliant and CE marked

Standards

Conforms to EN (IEC) 60079-0, EN (IEC) 60079-1

Approvals

Approved by ATEX and CQST, IMETRO and IECEX
ATEX: II 2G Exd IIC T4 - T6 (incorporating IIA & IIB)
Zones 1 & 2, zones 21 & 22

Moflash Beacon, Amber Lens Colour, ATEX Certified - BC150 Series - BC150AL05DCNNNARDN

Need a clear visual signal to warn against potential danger in a high-risk area? Choose this amber beacon from Moflash. Its ATEX certification means it's suitable for use in potentially explosive atmospheres. For flexible use, you can choose between a flashing, rotating or static light effect.

Features & Benefits

• Glass-reinforced plastic construction for resistance to heat and impact
• Broad operating temperature range between -40°C and +70°C for use in challenging conditions
• IP66 rating means it's dust-tight and protected against high-pressure water jets
• Compact dimensions of 212 (height) x 150mm (base diameter) for installation in tight spaces

Applications

• Oil and gas refineries
• Petrochemicals manufacturing
• Flour mills

What's the supply voltage of this beacon?

This beacon has a supply voltage range of 12 to 48V DC, making it suitable for use in low-power systems.
