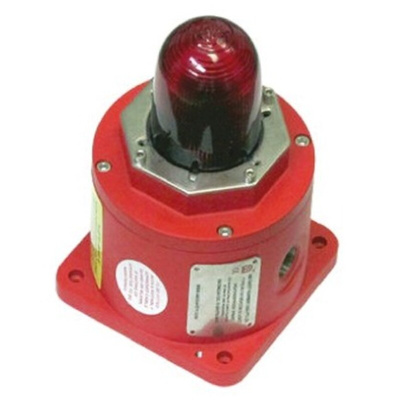

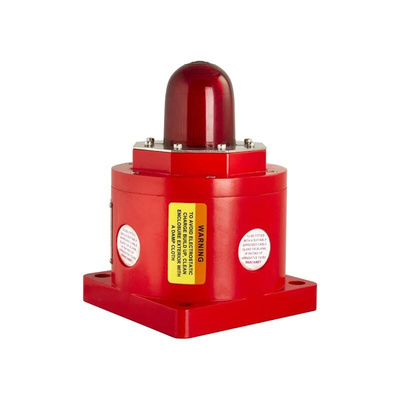

BC150RX05DCNNNARDN, Moflash BC150 Series Red Multiple Effect Beacon, 12 → 48 V dc, Base Mount, Xenon Bulb, IP66, Маячок

Moflash Explosion Proof Beacon, BC150 Series

The BC150 beacon has been approved for use in potentially explosive atmospheres, hazardous areas and very harsh environmental conditions.\n
Typical applications are Oil and Gas, On-shore & Offshore, Chemical, Petrochemical, Refineries & Marine locations, etc.\n
This warning beacon has a choice of two types of light source: either Xenon (strobe) with multiple flash rate and power ratings or an LED array with three status type indication options and two power ratings. The design of this beacon allows for termination inside the enclosure.

Xenon or LED visual beacons
360° light output around the vertical axis\n
Dustproof and weatherproof
Red (RAL3001) GRP (Glass Reinforced Plastic)
Tempered glass lens
L 150mm x W 150mm x H 212mm
IP66 / IP67 protection
Temperature -40 to +70°C
Accepts upto ≤2.5mm² incorporating rising clamp protectors
Cable entry 4 x M20
Weight 3.8 kg
RoHS compliant and CE marked

Standards

Conforms to EN (IEC) 60079-0, EN (IEC) 60079-1

Approvals

Approved by ATEX and CQST, IMETRO and IECEX
ATEX: II 2G Exd IIC T4 - T6 (incorporating IIA & IIB)
Zones 1 & 2, zones 21 & 22

Moflash Beacon, Red Lens Colour, ATEX Certified - BC150 Series - BC150RX05DCNNNARDN

Maintain workplace safety in hazardous environments with this red beacon from Moflash. It provides a clear visual warning of immediate danger to indicate an area is unsafe. For maximum visibility from all angles, the xenon bulb offers a 360° light output around the vertical axis. Thanks to its ATEX and IECEx certifications, you can be sure this signalling solution is safe for use in areas with potentially explosive atmospheres.

Features & Benefits

• Durable glass-reinforced plastic housing for resistance to impact and heat
• Wide operating temperature range of -40°C to +70°C for use in demanding environments

Applications

• Oil refineries
• Dockyards
• Aerospace industry

Can I use this beacon in areas exposed to heavy moisture?

Yes, this beacon has an IP66 rating, so it's dust-tight and protected against high-pressure water jets.
