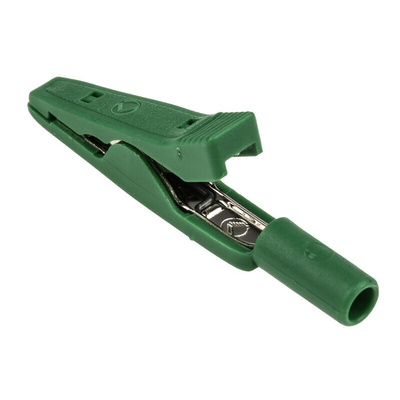

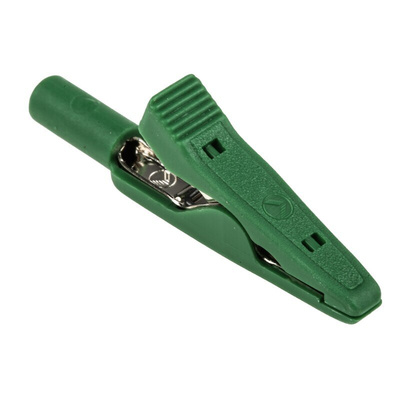

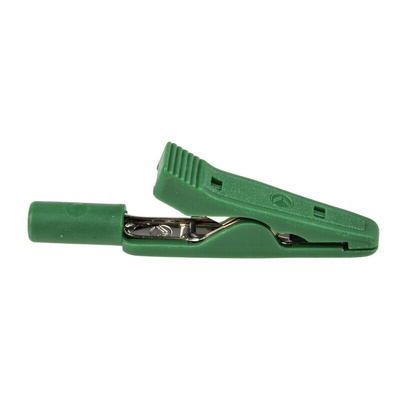

930317804, Hirschmann Test & Measurement Crocodile Clip 2 mm Connection, Brass, Bronze Contact, 8A, Green, Зажим

MA 1 CAT I Miniature Insulated Crocodile Clip, 2mm Socket

Hirschmann Test and Measurement MA 1 miniature insulated crocodile clip, features high strength insulation a 2mm spring loaded socket and nickel plated brass jaws. The flat portion of the jaws allows for a secure contact to be made when clamping even the thinnest of wires. These miniature crocodile clips are capable of clamping flat components and wires up to a maximum diameter of 4mm.

Rated voltage 30 VAC/ 60 VDC
Rated Current 8A
CAT I
4mm maximum clamp diameter
2mm spring loaded socket

MA 1_9303178xx
